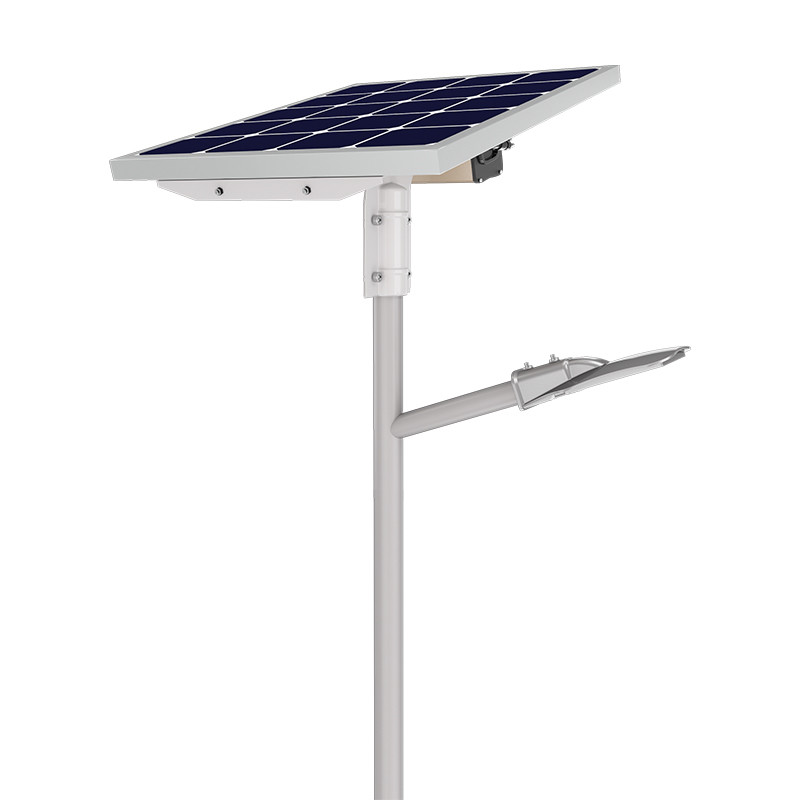

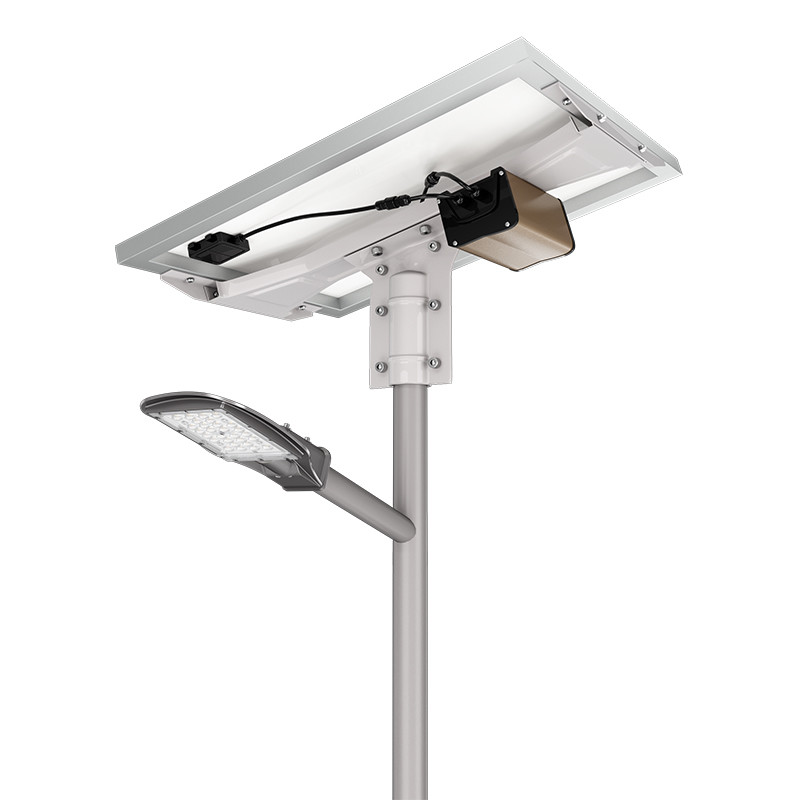

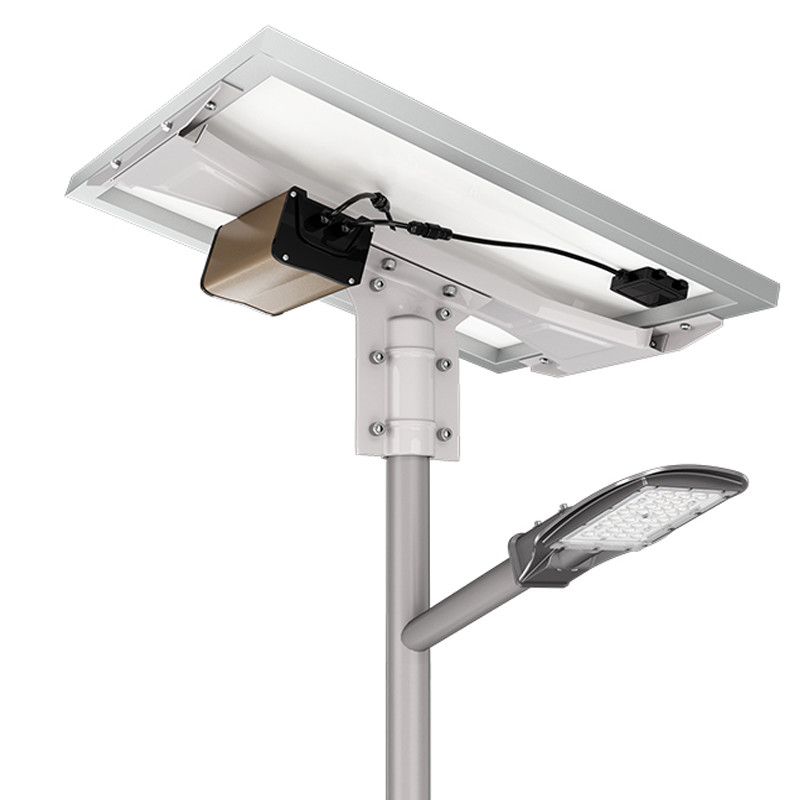

50W Split Type Solar Street Light

Product: 50W Split Type Solar Street Light
Classification: Lithium Battery Type
Port: Shanghai, China
Solar Street Lights powered by solar energy which is clean and endless. They are off-grid and no need connected to the electrical grid infrastructure. You can own a solar street light at a much lower cost. solar street light system is composed of solar panel, LED lights, controller, light pole and gel battery. It features by self-regulated switch on / off function and operates environmental friendly. solar street lights have widely used in new rural roads, urban arterial roads or slow lane, branch roads, and road lighting in public places such as scenic spots, parking lots, parks, squares and other public places.

Product Specifications

Light Source50 Watts
Luminous Flux7500 ~ 8500 lm
LED ChipCree, Lumileds, BridgeLux, Epistar etc Optional, 150 ~ 170 Lm / W, Service life of more than 50,000 hours
Beam Angle70° * 140°
Color Temperature3000 K ~ 6500 K optional
Lamp Body MaterialHigh Quality Die Casting Aluminum Alloy
IP RatingIP 65 to 68 optional
IK RatingIK 08 to 10 optional

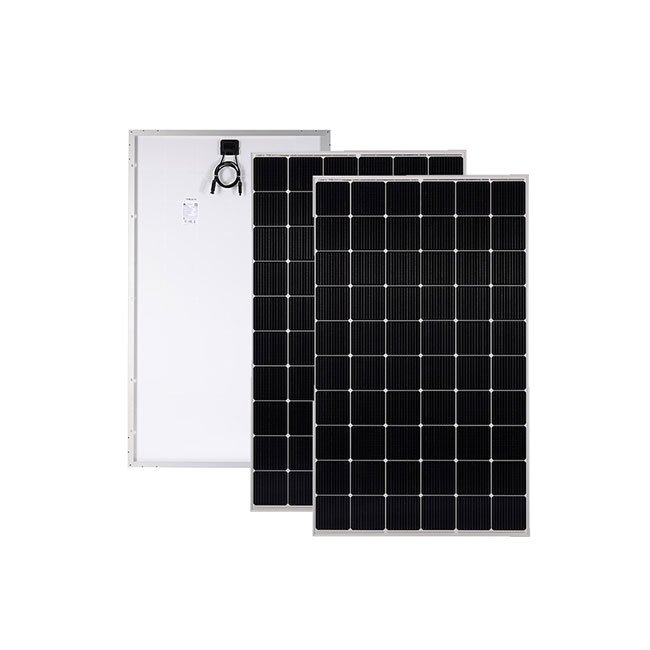

Solar Panels18V / 150W High Efficiency Monocrystalline Solar Panel, Grade A, Service life 25 years

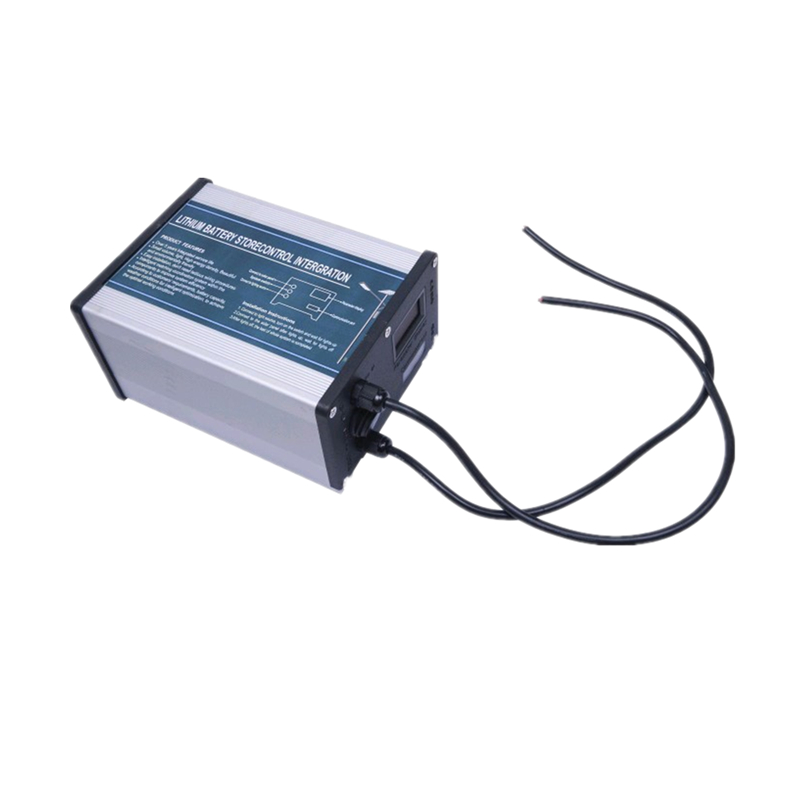

Battery12.8V / 75Ah LiFePO4 battery, More than 2500 deep cycles, Service life 7 - 8 years

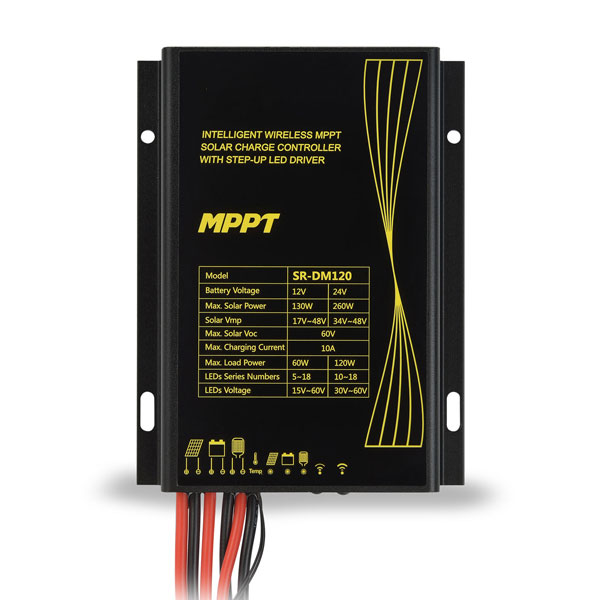

Controller TypeIntelligent type, Automatic Light, Time Control, IP 68

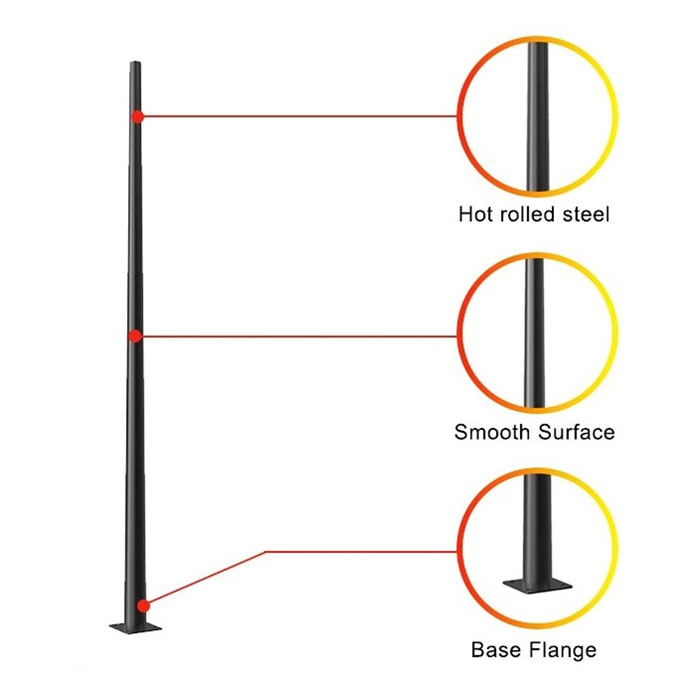

Light Pole Height7 - 8 M, Conical or Octagonal Light Pole optional
Light Pole MaterialHigh Quality Q235 Steel with Hot - Dip Galvanized, Powder Coated Finished
Lighting Time12 hours per day
Lighting ModeEnergy Saving Mode, 100% full power in the first 4 hours, 30% power in the next 8 hours
Rainy Days Back up3 ~ 5 days
Warranty5 Years

Features


■ Perfect combination of solar power and LED lighting, using solar power generation system, pure green energy, inexhaustible, environmental protection.

■ Lamp body with high quality aluminium alloy material, with light weight, corrosion resistance, wear and other characteristics, to ensure that products to adapt to wet, hydrochloric acid environment, is also good for heat dissipation.

 Top international brand LED chips ( Cree, Lumileds, BridgeLuxEpistar etc ) privide quality lighting.

■ We use A-grade Solar Panels to gain the max solar energy, because high efficiency solar panels can ensure fast charging ( The solar cells used in our solar lighting products are all from the top international brands, such as JinKoTrina, GCLLONGi, JA Solar etc, the conversion rate is over 21% ).

Solar panel use advanced low reflection and high light transmission glass and cell sheet surface cutting technology, in the weak light environment it also has excellent performance, reliable quality leads to a better sustainability even in harsh environment like desert, coastline etc.

 Using intelligent type controller, automatic light, time control, switch on automatically with light sensor, over charging and discharging protection, metal case and an IP68 waterproof level enable the device to operate in various kinds of tough conditions, ensures that the lights are bright every day.

■ Using high capacity and long life of LiFePO4 battery, 7 ~ 8 years working life and high-temperature resistance, make the whole light a longer life. even if the LiFePO4 battery internal or external damage, the battery doesn't burn, don't explode, good safety.

■ No need of cable installation, functional components modular design. installation, maintenance and replacement is convenient and quick.

 Extensively applied in the roads such as schools, residential quarters, industrial areas, park, sexpressways, streets, flyovers and pavements and other areas that need outdoor lighting.



Certificates



Application Areas


Solar Street Light is widely used in public areas and residential areas as follows



 Road and street


 Office buildings


 Gardens, parks


 Residential areas like villa and appartment or houses




FAQ


1. How does the light work ?

During the daytime, the solar panel will gain the power from the sun and charge the battery, when night comes, the light will automaticlly turn on, the battery inside will provide the energy to the light.


2. How many hours can the light work ?

Normally, after fully charged, the light can working 12h ( 100% full power in the first 4 hours, 30% power in the next 8 hours ). the lighting modes can also be modified according to customer requirements.


3. How many rainy days can the light work ?

The light can work for 3 ~ 5 rainy days.


4. Is the battery replaceable ?

Yes. The battery inside is easy to replace. If the battery broken during the warranty period, we will offer you free replacement.


5. Can we buy one set of samples ?

Yes. we welcome sample order to test and check quality.


6. Do you have any MOQ limit for solar lighting product order ?

No, even only buy 1 set as a sample for test is also available.


7. What about the lead time ?

Sample needs 3 ~ 5 days, mass production time needs 1 ~ 2 weeks for order quantity.


8. What's your warranty ?

We provide 5 years warranty for the whole set lighting system, replace any damaged parts free of charge during the warranty period. but the product damage caused by force majeure is excepted.
