Product: | 60W Split Type Solar Street Light |
---|---|
Classification: | Lithium Battery Type |
Port: | Shanghai, China |
Light Source | 60 Watts |
Luminous Flux | 9000 ~ 10200 lm |
LED Chip | Cree, Lumileds, BridgeLux, Epistar etc Optional, 150 ~ 170 Lm / W, Service life of more than 50,000 hours |
Beam Angle | 70° * 140° |
Color Temperature | 3000 K ~ 6500 K optional |
Lamp Body Material | High Quality Die Casting Aluminum Alloy |
IP Rating | IP 65 to 68 optional |
IK Rating | IK 08 to 10 optional |
Solar Panels | 18V / 180W High Efficiency Monocrystalline Solar Panel, Grade A, Service life 25 years |
Battery | 12.8V / 90Ah LiFePO4 battery, More than 2500 deep cycles, Service life 7 - 8 years |
Controller Type | Intelligent type, Automatic Light, Time Control, IP 68 |
Light Pole Height | 7 - 8 M, Conical or Octagonal Light Pole optional |

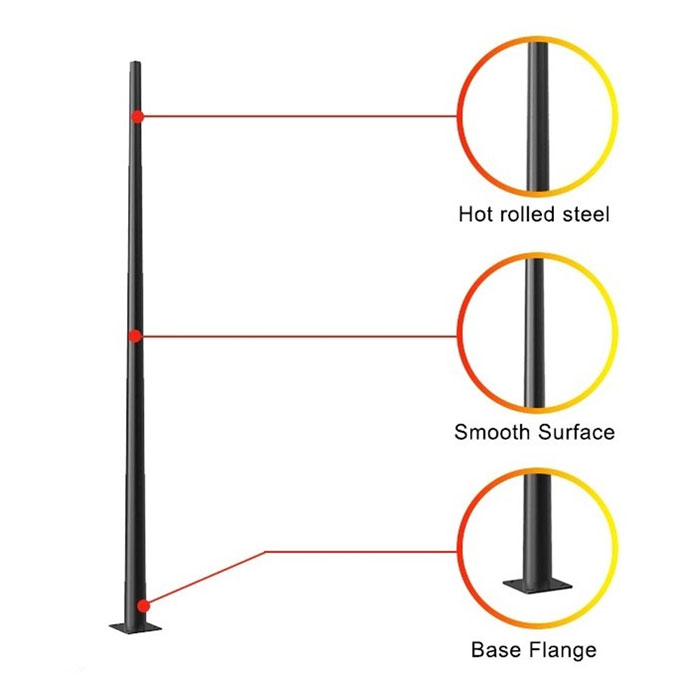

Light Pole Material | High Quality Q235 Steel with Hot - Dip Galvanized, Powder Coated Finished |
Lighting Time | 12 hours per day |
Lighting Mode | Energy Saving Mode, 100% full power in the first 4 hours, 30% power in the next 8 hours |
Rainy Days Back up | 3 ~ 5 days |
Warranty | 5 Years |
■ Perfect combination of solar power and LED lighting, using solar power generation system, pure green energy, inexhaustible, environmental protection.
■ Lamp body with high quality aluminium alloy material, with light weight, corrosion resistance, wear and other characteristics, to ensure that products to adapt to wet, hydrochloric acid environment, is also good for heat dissipation.
■ Top international brand LED chips ( Cree, Lumileds, BridgeLux, Epistar etc ) privide quality lighting.

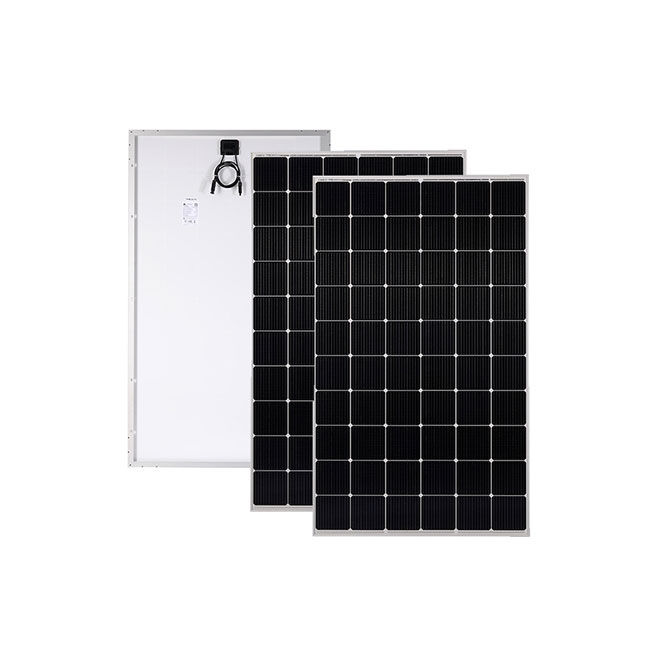

■ We use A-grade Solar Panels to gain the max solar energy, because high efficiency solar panels can ensure fast charging ( The solar cells used in our solar lighting products are all from the top international brands, such as JinKo, Trina, GCL, LONGi, JA Solar etc, the conversion rate is over 21% ).
■ Solar panel use advanced low reflection and high light transmission glass and cell sheet surface cutting technology, in the weak light environment it also has excellent performance, reliable quality leads to a better sustainability even in harsh environment like desert, coastline etc.

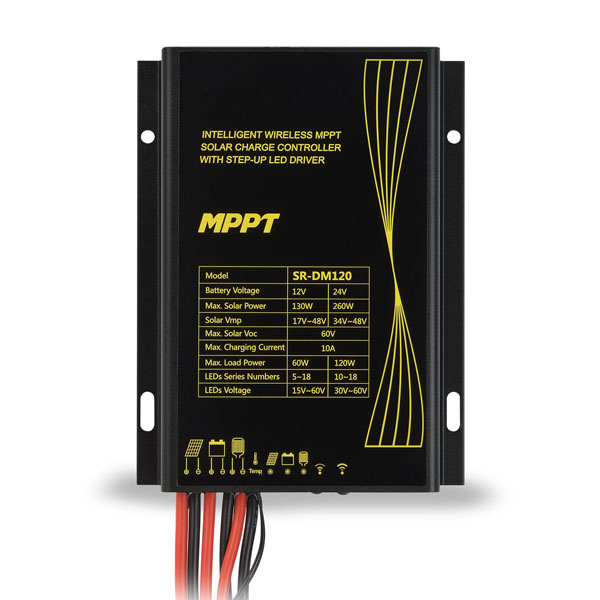

■ Using intelligent type controller, automatic light, time control, switch on automatically with light sensor, over charging and discharging protection, metal case and an IP68 waterproof level enable the device to operate in various kinds of tough conditions, ensures that the lights are bright every day.

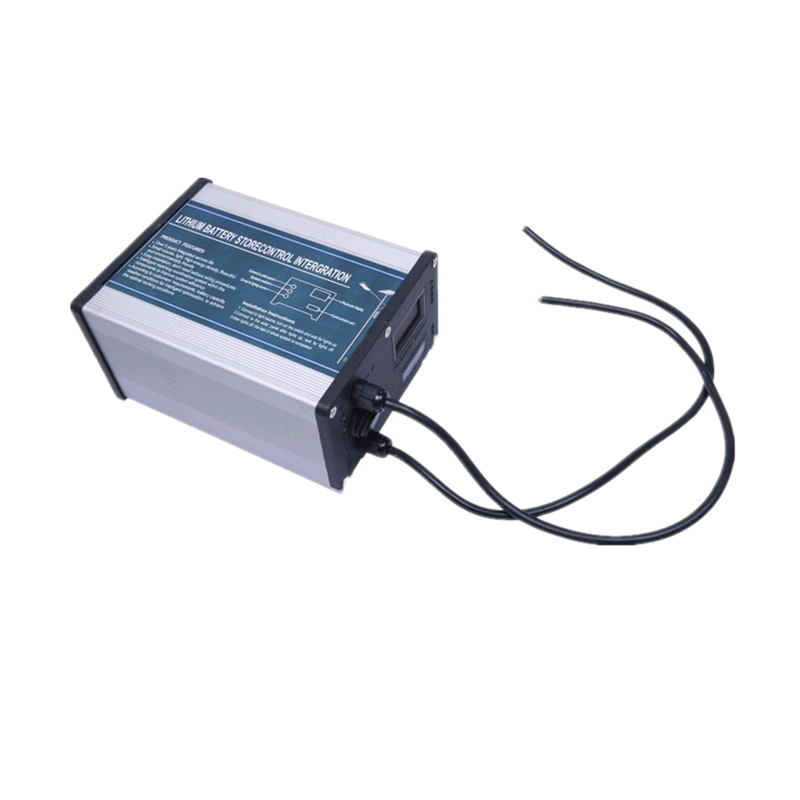

■ Using high capacity and long life of LiFePO4 battery, 7 ~ 8 years working life and high-temperature resistance, make the whole light a longer life. even if the LiFePO4 battery internal or external damage, the battery doesn't burn, don't explode, good safety.
■ No need of cable installation, functional components modular design. installation, maintenance and replacement is convenient and quick.
■ Extensively applied in the roads such as schools, residential quarters, industrial areas, park, sexpressways, streets, flyovers and pavements and other areas that need outdoor lighting.
Certificates
Application Areas
Solar Street Light is widely used in public areas and residential areas as follows
▲ Road and street
▲ Office buildings
▲ Gardens, parks
▲ Residential areas like villa and appartment or houses
FAQ
1. How does the light work ?
During the daytime, the solar panel will gain the power from the sun and charge the battery, when night comes, the light will automaticlly turn on, the battery inside will provide the energy to the light.
2. How many hours can the light work ?
Normally, after fully charged, the light can working 12h ( 100% full power in the first 4 hours, 30% power in the next 8 hours ). the lighting modes can also be modified according to customer requirements.
3. How many rainy days can the light work ?
The light can work for 3 ~ 5 rainy days.
4. Is the battery replaceable ?
Yes. The battery inside is easy to replace. If the battery broken during the warranty period, we will offer you free replacement.
5. Can we buy one set of samples ?
Yes. we welcome sample order to test and check quality.
6. Do you have any MOQ limit for solar lighting product order ?
No, even only buy 1 set as a sample for test is also available.
7. What about the lead time ?
Sample needs 3 ~ 5 days, mass production time needs 1 ~ 2 weeks for order quantity.
8. What's your warranty ?
We provide 5 years warranty for the whole set lighting system, replace any damaged parts free of charge during the warranty period. but the product damage caused by force majeure is excepted.
