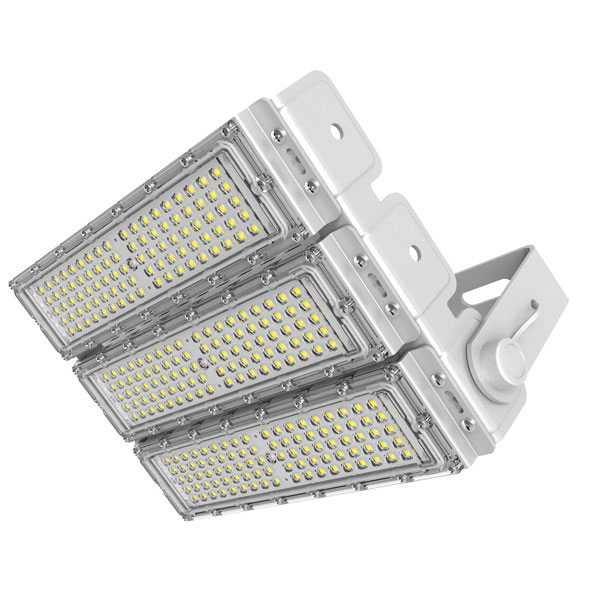

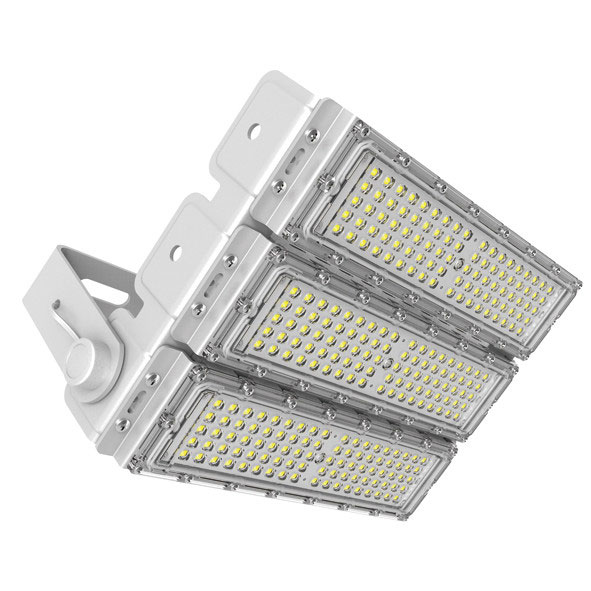

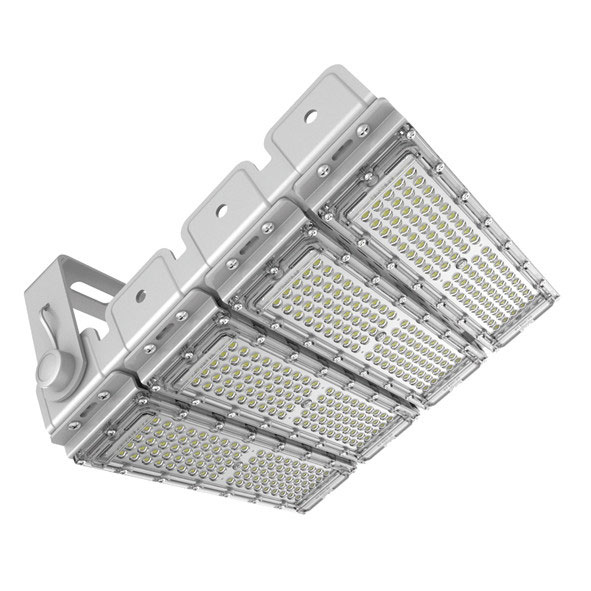

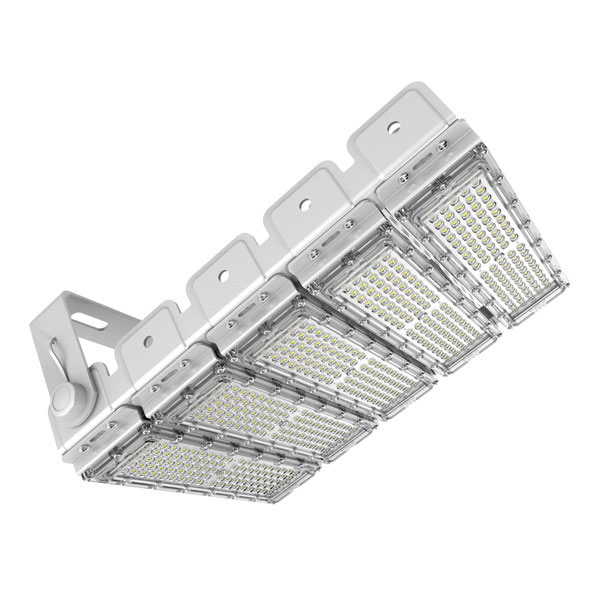

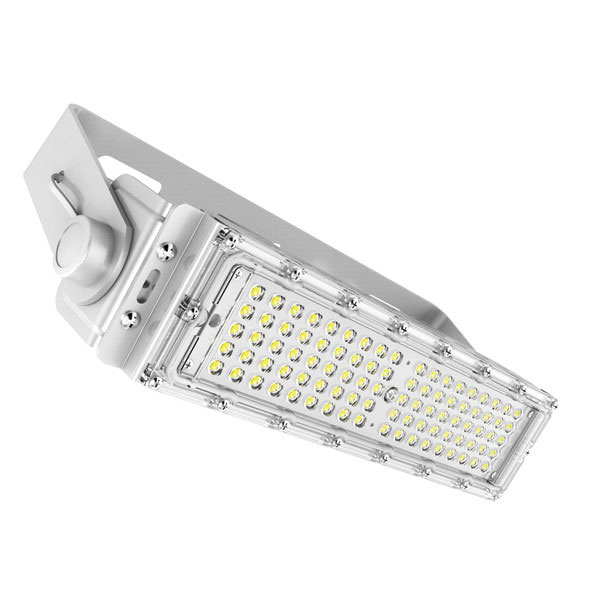

UB-FL-15

Product:	UB-FL-15
Classification:	LED Flood Light
Port:	Shanghai, China

LED Flood Light, also known as LED spotlight, LED projection light. LED floodlights are controlled by built-in microchips. There are two types of products, one is a power chip combination, and the other is a single high-power chip. The former has stable performance, and the single high-power product has a large structure. The range of projection light, the latter can achieve very high power, can carry out long-distance large-area projection.LED flood lamp makes the illuminator that specifies the illumination on the illuminated surface higher than the surrounding environment, also known as the spotlight. Typically, the best led flood light can be aimed in any direction and has structures that are unaffected by climatic conditions. Mainly used for large-area mines, building outlines, stadiums, overpasses, monuments, parks and flower beds. Therefore, almost all large-area lighting fixtures used outdoors can be regarded as spotlights.

Product Specifications

Light Source	50 ~ 300 Watts Optional
LED Chip	150 ~ 170 lm / W, Service life of more than 50,000 hours
LED Chip Brand	Cree, Lumileds, BridgeLux, Epistar etc Optional
Luminous Flux	7500 ~ 51000 lm
CRI	> 70 Ra
Power Factor	＞ 0.95
Color Temperature	3000 K ~ 6000 K Optional
Beam Angle	60° * 60° / 90° * 90° / 100° * 90° Optional
Input Voltage Rage	90 ~ 305 V, 50 / 60 HZ
Lightning Protection Level	10 KV
LED Driver	MeanWell, PHILIPS, Inventronics, MOSO, SOSEN etc Optional, IP 67
Lamp Shell Material	Pressure Die Casting Aluminum with Powder Coating
IP Rating	IP 65
IK Rating	IK 08
Working Temperature	- 45℃ ~ + 60℃
Working Humidity	10% ~ 90%
Number of Packing	1 Pcs / Carton
Warranty	5 Years

Features

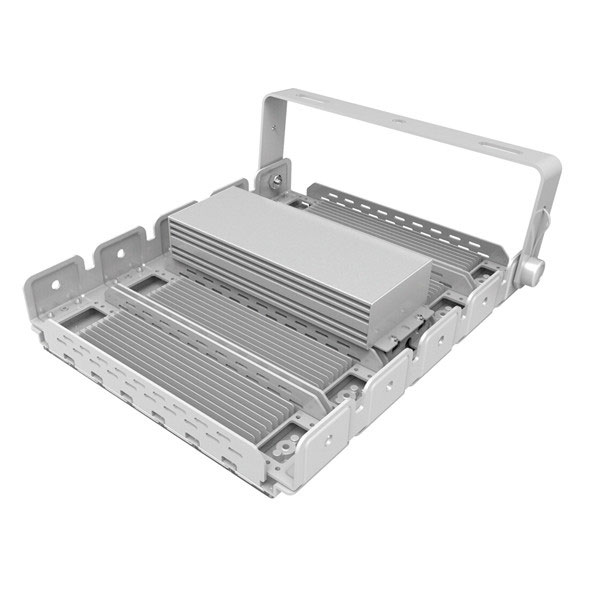

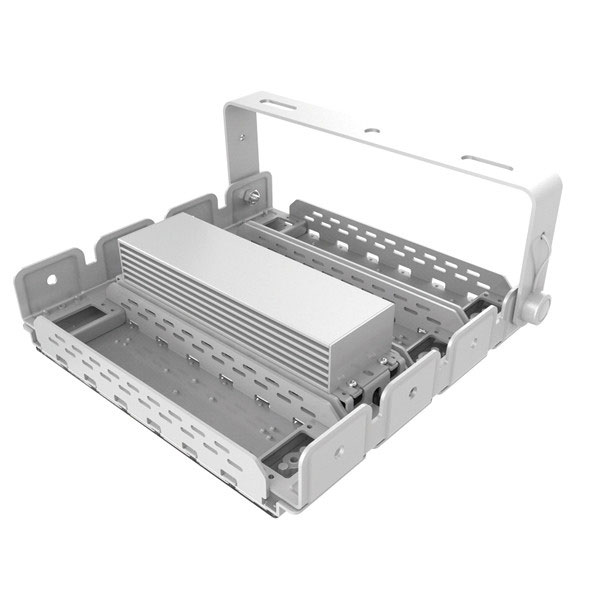

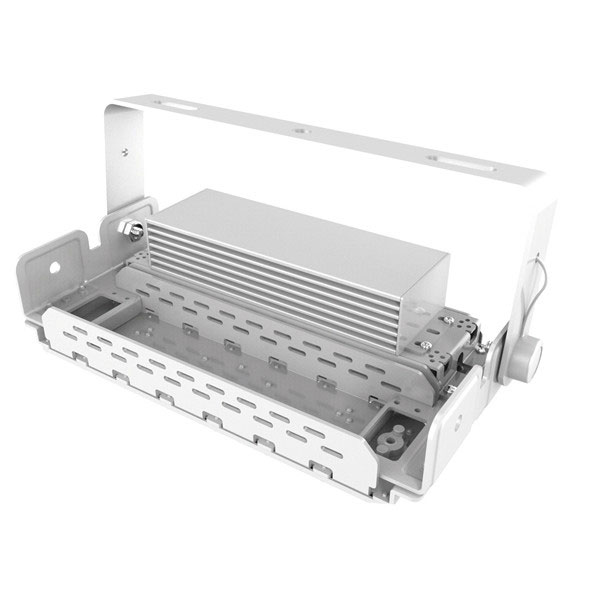

■ Lamp housing is made by die casting aluminum,electrostatic powder coating for surface treatment, with light weight, corrosion resistance, wear and other characteristics, to ensure that products to adapt to wet, hydrochloric acid environment, is also good for heat dissipation.

■ Top international brand LED chips ( Cree, Lumileds, BridgeLux, Epistar etc ) privide quality lighting.

■ More than 70% energy saving compared to HID.

■ Slim light body design, elegant appearance, the drag coefficient is small.

■ Compact design for lower weight and wind resistance.

■ Special heatsink design to make sure good heat dissipation.

■ Life time is more than 50,000 hours, maintenance cost saved much.

■ Ergonomic and dedicated lighting distributions available for various roadway applications.

Certificates

Application Areas

LED Flood Lights is widely used in public areas and residential areas as follows

▲ Road and Street

▲ Office Buildings

▲ Gardens, Parks

▲ Residential areas like villa and appartment or houses

FAQ

1. Can I have a sample order for led light ?

Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

2. What about the lead time ?

Sample needs 3 - 5 days, mass production time needs 1 - 2 weeks for order quantity.

3. Do you have any MOQ limit for solar lighting product order ?

No, even only buy 1 set as a sample for test is also available.

4. For sample, how do you ship the goods and how long does it take to arrive ?

We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3 - 5 days to arrive. Airline and sea shipping also optional.

5. Is it OK to print my logo on led light product ?

Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

6. What's your warranty ?

We provide 5 years warranty for the whole set lighting system, replace any damaged parts free of charge during the warranty period. but the product damage caused by force majeure is excepted.
