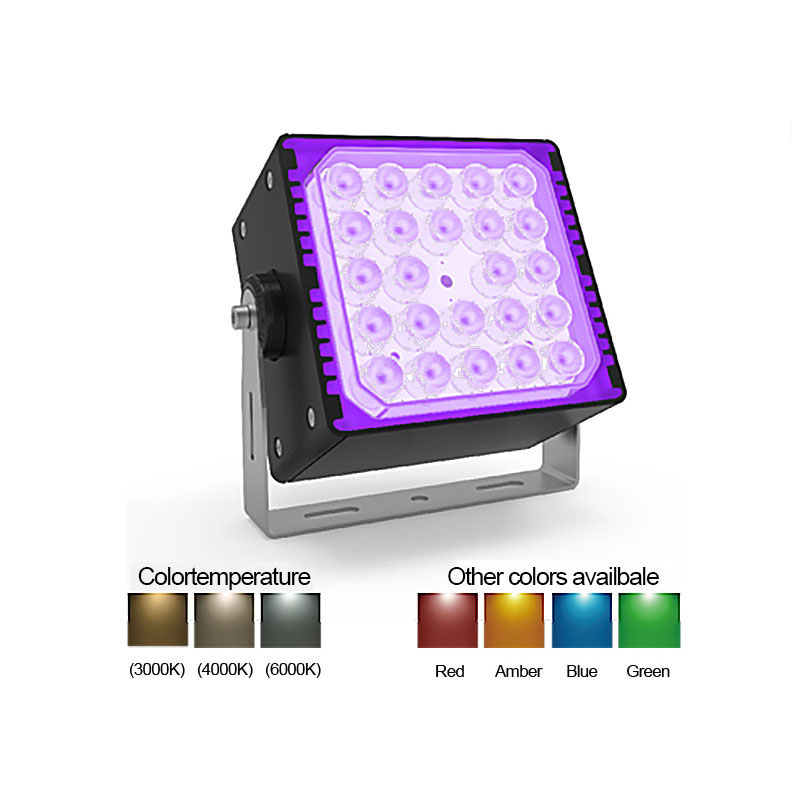

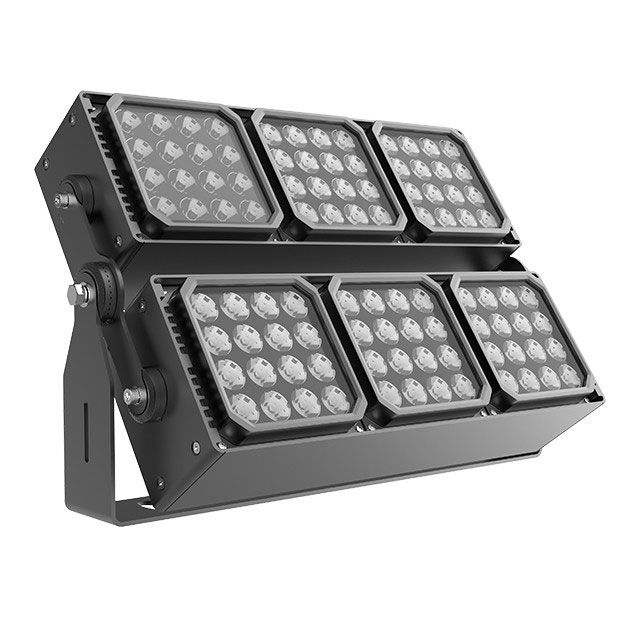

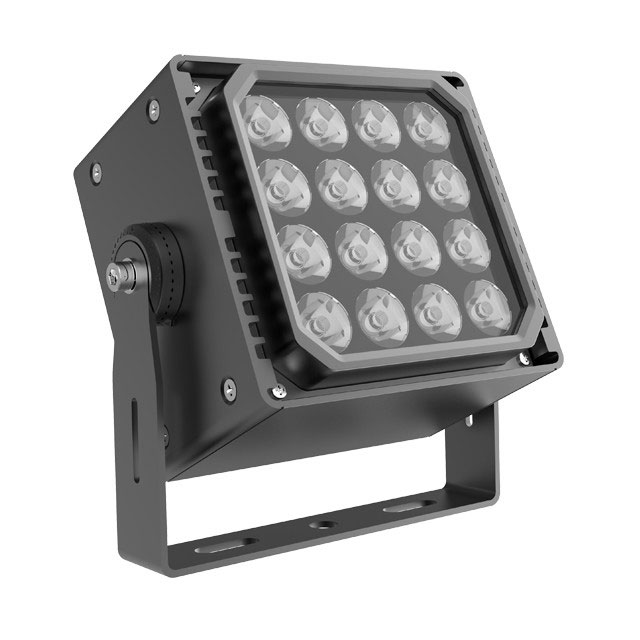

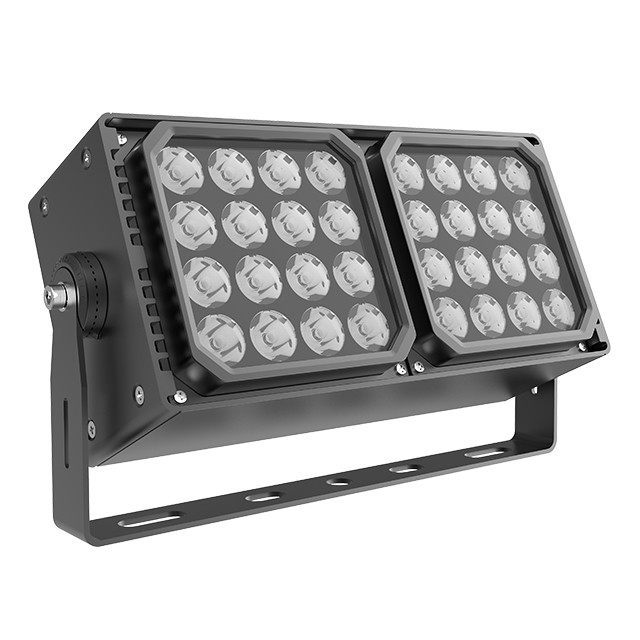

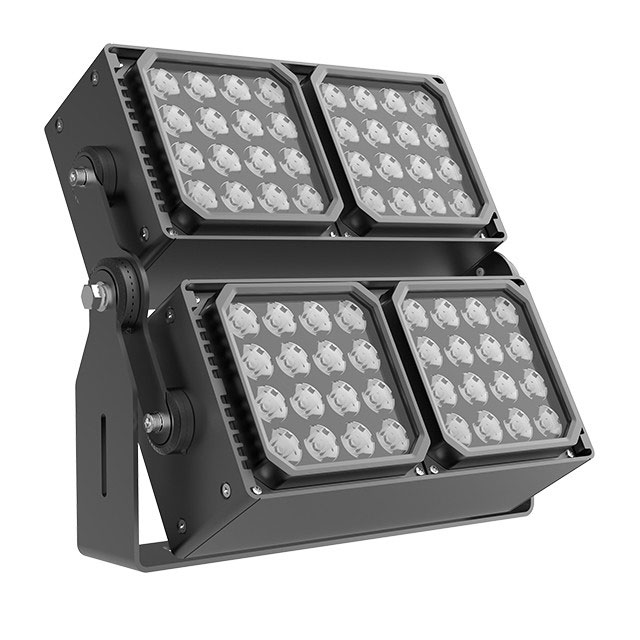

UB-FL-30

Product:	UB-FL-30
Classification:	LED Flood Light
Port:	Shanghai, China

Product Specifications

Light Source	36 ~ 216 Watts Optional
LED Chip	150 ~ 170 lm / W, Service life of more than 50,000 hours
LED Chip Brand	Cree, Lumileds, BridgeLux, Epistar etc Optional
Luminous Flux	5400 ~ 36720 lm
CRI	> 70 Ra
Power Factor	＞ 0.95
Color Temperature	3000 K ~ 6000 K Optional
Beam Angle	5° / 8° / 12° / 15° / 24° / 30° / 45° / 60° / 20° * 40° / 10° * 60° Optional
Input Voltage Rage	90 ~ 305 V, 50 / 60 HZ
Lightning Protection Level	10 KV
LED Driver	MeanWell, PHILIPS, Inventronics, MOSO, SOSEN etc Optional, IP 67
Lamp Shell Material	Pressure Die Casting Aluminum with Powder Coating
Control Method	Conventional, 0 ~ 10V / DALI dimming, DMX512 Color Change
Color Temperature	R / G / W / B or RGB Color Change Optional
IP Rating	IP 67
IK Rating	IK 08
Working Temperature	- 45℃ ~ + 60℃
Working Humidity	10% ~ 90%
Number of Packing	1 Pcs / Carton
Warranty	5 Years

Features

■ UB-FL-30 series flood light configure advanced light source, with excellent optical performance, bring a colorful lighting environment for the urban landscape, highlight the beauty of urban architecture.

■ Optical grade PC material lens, high transmittance, multi-angle selection, can adapt to a variety of scenes.

■ Include monochrome ( W / R / G / A ) / RGB 3 in 1 / RGBW 4 in 1 full color control, high saturation color light, to meet the high quality of color mixing uniformity and consistency.

■ Aviation aluminium alloy housing, the surface is oxidized by anodic oxidation, thermal conductivity can be reached 230W / m·K, excellent corrosion resistance and rust prevention, can adapt to different outdoor environment.

■ Configure SUS 304 stainless steel bracket, equipped with gear lock function, minimum adjust the angle of 10 °.

■ IP67 protect class, don't worry about the harsh outdoor environment.

■ Can be use on DMX512 control system.

Certificates

Application Areas

LED Flood Lights is widely used in public areas and residential areas as follows

▲ Road and Street

▲ Office Buildings

▲ Gardens, Parks

▲ Residential areas like villa and appartment or houses

FAQ

1. Can I have a sample order for led light ?

Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

2. What about the lead time ?

Sample needs 3 - 5 days, mass production time needs 1 - 2 weeks for order quantity.

3. Do you have any MOQ limit for solar lighting product order ?

No, even only buy 1 set as a sample for test is also available.

4. For sample, how do you ship the goods and how long does it take to arrive ?

We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3 - 5 days to arrive. Airline and sea shipping also optional.

5. Is it OK to print my logo on led light product ?

Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

6. What's your warranty ?

We provide 5 years warranty for the whole set lighting system, replace any damaged parts free of charge during the warranty period. but the product damage caused by force majeure is excepted.
