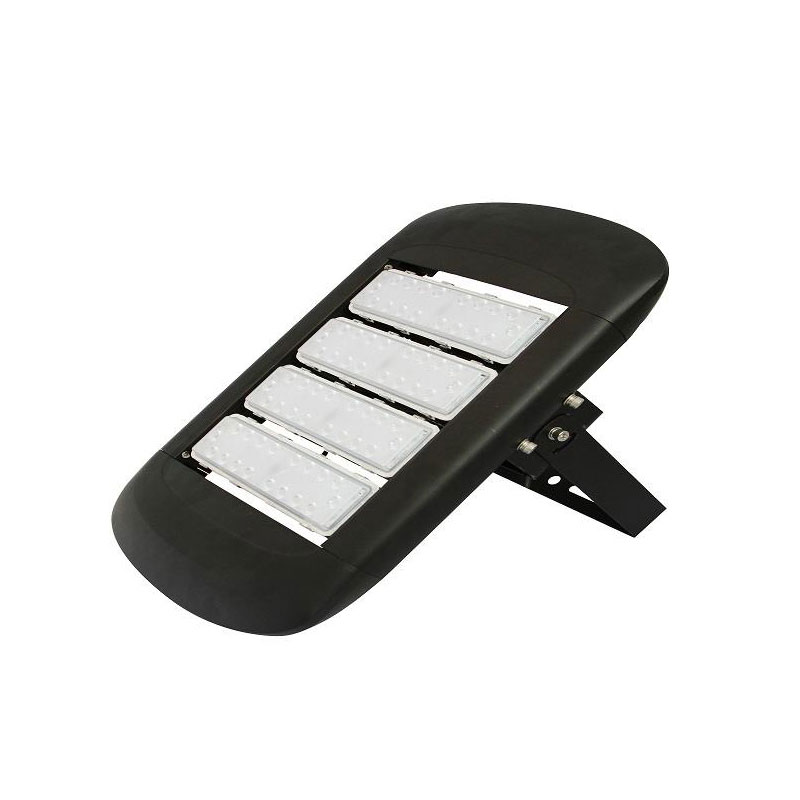

UB-FL-1A

Product:	UB-FL-1A
Classification:	LED Flood Light
Port:	Shanghai, China

LED Flood Light, also known as LED spotlight, LED projection light. LED floodlights are controlled by built-in microchips. There are two types of products, one is a power chip combination, and the other is a single high-power chip. The former has stable performance, and the single high-power product has a large structure. The range of projection light, the latter can achieve very high power, can carry out long-distance large-area projection.LED flood lamp makes the illuminator that specifies the illumination on the illuminated surface higher than the surrounding environment, also known as the spotlight. Typically, the best led flood light can be aimed in any direction and has structures that are unaffected by climatic conditions. Mainly used for large-area mines, building outlines, stadiums, overpasses, monuments, parks and flower beds. Therefore, almost all large-area lighting fixtures used outdoors can be regarded as spotlights.

Product Specifications

Light Source	40 ~ 420 Watts Optional
LED Chip	150 ~ 170 lm / W, Service life of more than 50,000 hours
LED Chip Brand	Cree, Lumileds, BridgeLux, Epistar etc Optional
Luminous Flux	6000 ~ 71400 lm
CRI	> 70 Ra
Power Factor	＞ 0.95
Color Temperature	3000 K ~ 6000 K Optional
Beam Angle	60° / 90° / 120° / 140° * 100° Optional
Input Voltage Rage	90 ~ 305 V, 50 / 60 HZ
Lightning Protection Level	6 or 10 KV Optional
LED Driver	MeanWell, PHILIPS, Inventronics, MOSO, SOSEN etc Optional, IP 67
Lamp Shell Material	Pressure Die Casting Aluminum with Powder Coating
IP Rating	IP 67
IK Rating	IK 08
Working Temperature	- 45℃ ~ + 60℃
Working Humidity	10% ~ 90%
Number of Packing	1 Pcs / Carton
Warranty	5 Years

Features

■ Unique patented IP68 ( highest protection level ) LED light engines.

■ Top international brand LED chips ( Cree, Lumileds, BridgeLux, Epistar etc ) privide quality lighting.

■ Designed to last at least 50,000 hours at L70.

■ Ergonomic and dedicated lighting distributions available for stadium, building and area lighting, etc.

■ Whole structure heating dissipation design with best thermal conduction, radiation and convection.

■ Flexible to reach desired power selections by choosing appropriate light engines.

■ Unmatched lighting performance, driver stability and desirable lifespan.

■ Angle adjustable within ±60° with mounting brackets.

■ Tool-free onsite replacements of light engines greatly reduce maintenance cost.

Certificates

Application Areas

LED Flood Lights is widely used in public areas and residential areas as follows

▲ Road and Street

▲ Office Buildings

▲ Gardens, Parks

▲ Residential areas like villa and appartment or houses

FAQ

1. Can I have a sample order for led light ?

Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

2. What about the lead time ?

Sample needs 3 - 5 days, mass production time needs 1 - 2 weeks for order quantity.

3. Do you have any MOQ limit for solar lighting product order ?

No, even only buy 1 set as a sample for test is also available.

4. For sample, how do you ship the goods and how long does it take to arrive ?

We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3 - 5 days to arrive. Airline and sea shipping also optional.

5. Is it OK to print my logo on led light product ?

Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

6. What's your warranty ?

We provide 5 years warranty for the whole set lighting system, replace any damaged parts free of charge during the warranty period. but the product damage caused by force majeure is excepted.
