Index > Products > LED Flood Light

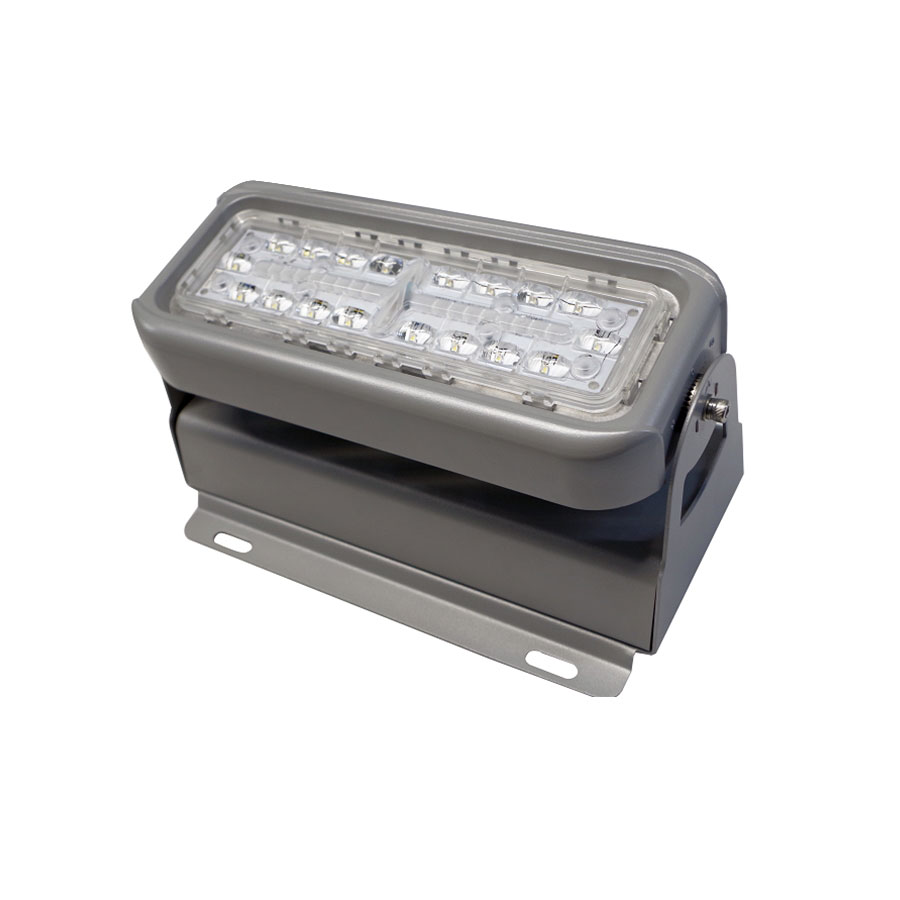

UB-FL-6C

Product: UB-FL-6C
Classification: LED Flood Light
Port: Shanghai, China
LED Flood Light, also known as LED spotlight, LED projection light. LED floodlights are controlled by built-in microchips. There are two types of products, one is a power chip combination, and the other is a single high-power chip. The former has stable performance, and the single high-power product has a large structure. The range of projection light, the latter can achieve very high power, can carry out long-distance large-area projection.LED flood lamp makes the illuminator that specifies the illumination on the illuminated surface higher than the surrounding environment, also known as the spotlight. Typically, the best led flood light can be aimed in any direction and has structures that are unaffected by climatic conditions. Mainly used for large-area mines, building outlines, stadiums, overpasses, monuments, parks and flower beds. Therefore, almost all large-area lighting fixtures used outdoors can be regarded as spotlights.

Product Specifications

Light Source30 ~ 60 Watts Optional
LED Chip150 ~ 170 lm / W, Service life of more than 50,000 hours
LED Chip BrandCree, Lumileds, BridgeLux, Epistar etc Optional
Luminous Flux4500 ~ 10200 lm
CRI> 70 Ra
Power Factor> 0.95
Color Temperature3000 K ~ 6000 K Optional
Beam Angle12° / 40° / 60° / 90° / 110° * 40° Optional
Input Voltage Rage90 ~ 305 V, 50 / 60 HZ
Lightning Protection Level10 KV
LED DriverMeanWell, PHILIPS, Inventronics, MOSO, SOSEN etc Optional, IP 67
Lamp Shell MaterialPressure Die Casting Aluminum with Powder Coating
IP RatingIP 68
IK RatingIK 08
Working Temperature- 45℃ ~ + 60℃
Working Humidity10% ~ 90%
Number of Packing1 Pcs / Carton
Warranty5 Years

Features

 Whole structure cooling technology, high efficient heat dissipation.

 Top international brand LED chips ( Cree, Lumileds, BridgeLuxEpistar etc privide quality lighting.

■ Designed to last at least 50,000 hours at L70.

 Ergonomic light distribution to achieve uniform illuminating effect.

 Double-coupling IP68 protection, highest waterproof level.

■ Intelligent constant current driving technology, long life span.

 Mounting bracket adjustable within ±90 degree.



Certificates



Application Areas


LED Flood Lights is widely used in public areas and residential areas as follows


 Road and Street


 Office Buildings


 Gardens, Parks


 Residential areas like villa and appartment or houses




FAQ


1. Can I have a sample order for led light ?

Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.


2. What about the lead time ?

Sample needs 3 - 5 days, mass production time needs 1 - 2 weeks for order quantity.


3. Do you have any MOQ limit for solar lighting product order ?

No, even only buy 1 set as a sample for test is also available.


4. For sample, how do you ship the goods and how long does it take to arrive ?

We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3 - 5 days to arrive. Airline and sea shipping also optional.


5. Is it OK to print my logo on led light product ?

Yes. Please inform us formally before our production and confirm the design firstly based on our sample.


6. What's your warranty ?

We provide 5 years warranty for the whole set lighting system, replace any damaged parts free of charge during the warranty period. but the product damage caused by force majeure is excepted.
