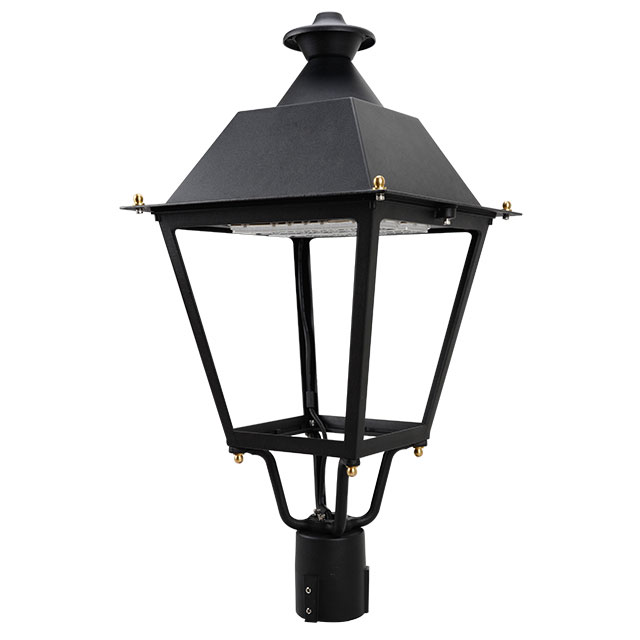

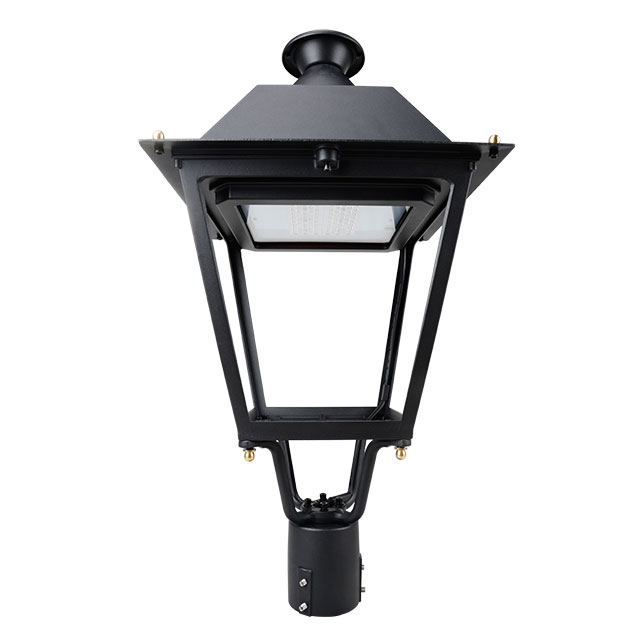

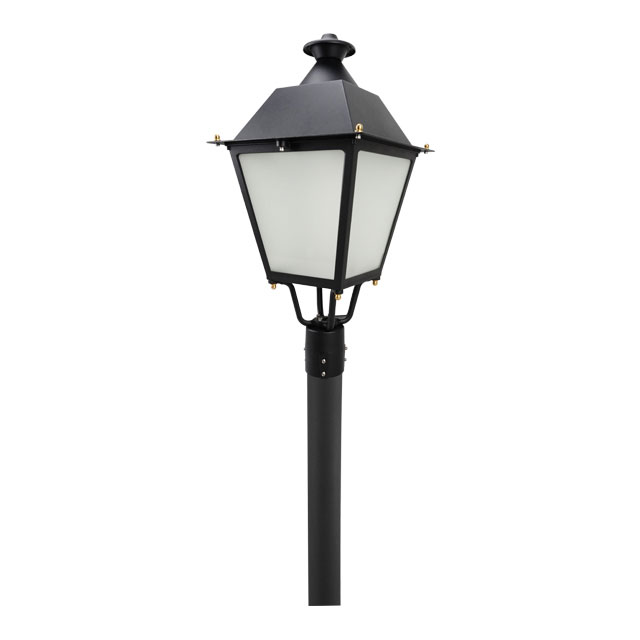

UB-GL-D01A

Product:	UB-GL-D01A
Classification:	LED Garden Light
Port:	Shanghai, China

Product Specifications

Light Source	30 ~ 60 Watts Optional
LED Chip	150 ~ 170 lm / W, Service life of more than 50,000 hours
LED Chip Brand	Cree, Lumileds, BridgeLux, Epistar etc Optional
Luminous Flux	4500 ~ 10200 lm
CRI	> 70 Ra
Power Factor	＞ 0.95
Color Temperature	3000 K ~ 6000 K Optional
Beam Angle	145° * 60°
Input Voltage Rage	90 ~ 305 V, 50 / 60 HZ
Lightning Protection Level	10 KV
LED Driver	MeanWell, PHILIPS, Inventronics, MOSO, SOSEN etc Optional, IP 67
Lamp Shell Material	Pressure Die Casting Aluminum with Powder Coating
Installation Diameter	Φ 29 mm
IP Rating	IP 65
IK Rating	IK 08
Working Temperature	- 45℃ ~ + 60℃
Working Humidity	10% ~ 90%
Product Size	400 * 400 * 815 mm
Package Size	440 * 440 * 650 mm
Net Weight	7 KG
Gross Weight	8 KG
Number of Packing	1 Pcs / Carton
Warranty	5 Years

Features

■ UB01A series garden lights combine UB patented modular technology and classical out door lantern arts. the technology is modern but quaint.

■ UB patented module uses LUMILEDS 3030 lamp beads, fully enclosed, waterproof rating up to IP68, good heat dissipation, long life.

■ The module has a maximum power of up to 60W and a maximum luminous efficiency of up to 190 Lm / W. the UB01A lamps can be fitted with one or two modules.

■ The painted color is black, and it canbe white, gray and others according to the request of the clients.

■ Products shell with high quality aluminium alloy material, with light weight, corrosion resistance, wear and other characteristics, to ensure that products to adapt to wet, hydrochloric acid environment, is also good for heat dissipation.

Certificates

Application Areas

LED Garden Lights is widely used in public areas and residential areas as follows

▲ Road and Street

▲ Office Buildings

▲ Gardens, Parks

▲ Residential areas like villa and appartment or houses

FAQ

1. Can I have a sample order for led light ?

Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

2. What about the lead time ?

Sample needs 3 - 5 days, mass production time needs 1 - 2 weeks for order quantity.

3. Do you have any MOQ limit for solar lighting product order ?

No, even only buy 1 set as a sample for test is also available.

4. For sample, how do you ship the goods and how long does it take to arrive ?

We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3 - 5 days to arrive. Airline and sea shipping also optional.

5. Is it OK to print my logo on led light product ?

Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

6. What's your warranty ?

We provide 5 years warranty for the whole set lighting system, replace any damaged parts free of charge during the warranty period. but the product damage caused by force majeure is excepted.
