Index > Products > LED Garden Light

UB-GL-D10

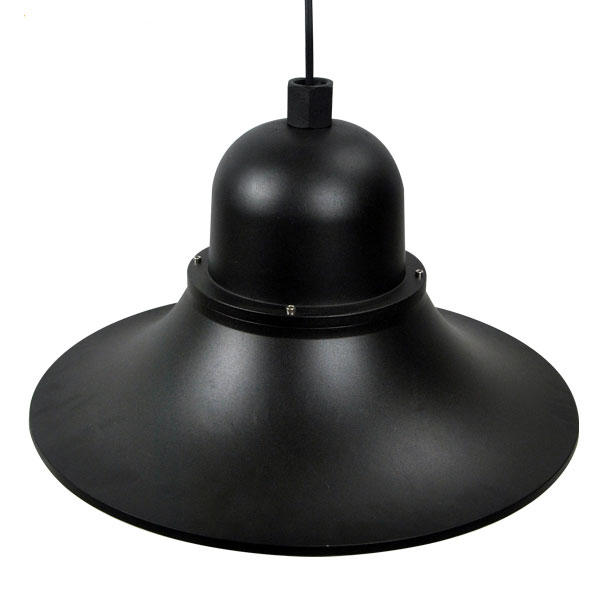

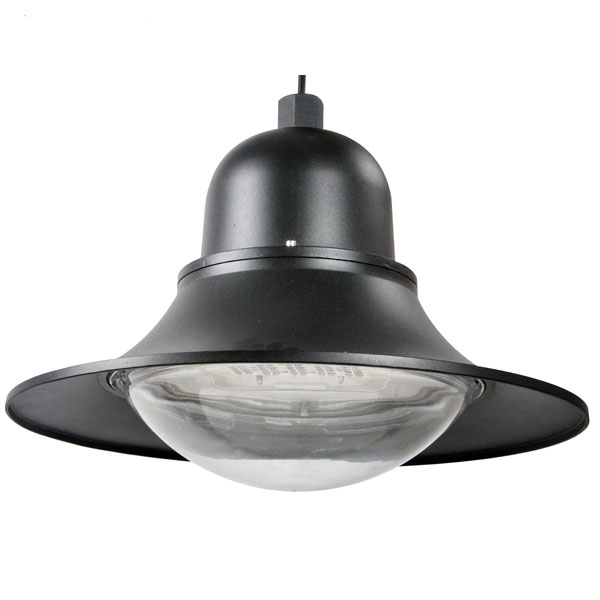

Product: UB-GL-D10
Classification: LED Garden Light
Port: Shanghai, China
LED garden lights is a kind of outdoor lighting. Its light source uses a new type of LED semiconductor as the illuminant. It usually refers to outdoor road lighting below 6 meters. Its main components are: LED light source, lamp, light pole and flange. The disc and the basic embedded parts are composed of 5 parts. Because the LED garden lamp has the characteristics of versatility, aesthetics, landscaping and decorative environment, it is also called landscape LED garden lights. LED has the characteristics of energy saving and high efficiency. It is mainly used for outdoor lighting in urban slow lanes, narrow lanes, residential quarters, tourist attractions, public places such as parks and plazas, which can prolong the time of people's outdoor activities and improve the safety of property.

Product Specifications

Light Source30 ~ 50 Watts Optional
LED Chip150 ~ 170 lm / W, Service life of more than 50,000 hours
LED Chip BrandCree, Lumileds, BridgeLux, Epistar etc Optional
Luminous Flux4500 ~ 8500 lm
CRI> 70 Ra
Power Factor> 0.95
Color Temperature3000 K ~ 6000 K Optional
Beam Angle160° * 80° / 160° * 110° / 155° * 155° Optional
Input Voltage Rage90 ~ 305 V, 50 / 60 HZ
Lightning Protection Level10 KV
LED DriverMeanWell, PHILIPS, Inventronics, MOSO, SOSEN etc Optional, IP 67
Lamp Shell MaterialPressure Die Casting Aluminum with Powder Coating
Installation DiameterΦ 76 mm
IP RatingIP 65
IK RatingIK 08
Working Temperature- 45℃ ~ + 60℃
Working Humidity10% ~ 90%
Product SizeΦ 560 * H 380 mm
Package Size460 * 460 * 460 mm
Net Weight5.5 KG
Gross Weight6.5 KG
Number of Packing1 Pcs / Carton
Warranty5 Years

Features

■ Lamp housing is made by die casting aluminum,electrostatic powder coating for surface treatment, with light weight, corrosion resistance, wear and other characteristics, to ensure that products to adapt to wet, hydrochloric acid environment, is also good for heat dissipation.

■ Top international brand LED chips ( Cree, Lumileds, BridgeLuxEpistar etc ) privide quality lighting.

■ Double diffusion technique photometric to diffuser and makes the lights more even.

Sealed lamp housing and Supper white toughened glass, impact resistant.

 The painted color is black, and it canbe white, gray and others according to the request of the clients.



Certificates



Application Areas


LED Garden Lights is widely used in public areas and residential areas as follows


 Road and Street


 Office Buildings


 Gardens, Parks


 Residential areas like villa and appartment or houses




FAQ


1. Can I have a sample order for led light ?

Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.


2. What about the lead time ?

Sample needs 3 - 5 days, mass production time needs 1 - 2 weeks for order quantity.


3. Do you have any MOQ limit for solar lighting product order ?

No, even only buy 1 set as a sample for test is also available.


4. For sample, how do you ship the goods and how long does it take to arrive ?

We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3 - 5 days to arrive. Airline and sea shipping also optional.


5. Is it OK to print my logo on led light product ?

Yes. Please inform us formally before our production and confirm the design firstly based on our sample.


6. What's your warranty ?

We provide 5 years warranty for the whole set lighting system, replace any damaged parts free of charge during the warranty period. but the product damage caused by force majeure is excepted.
