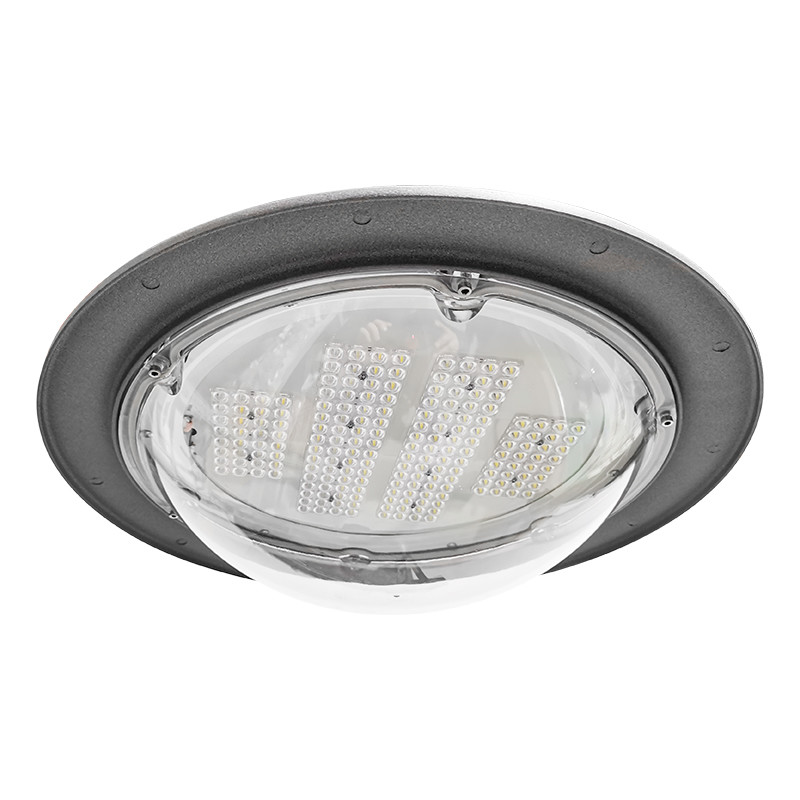

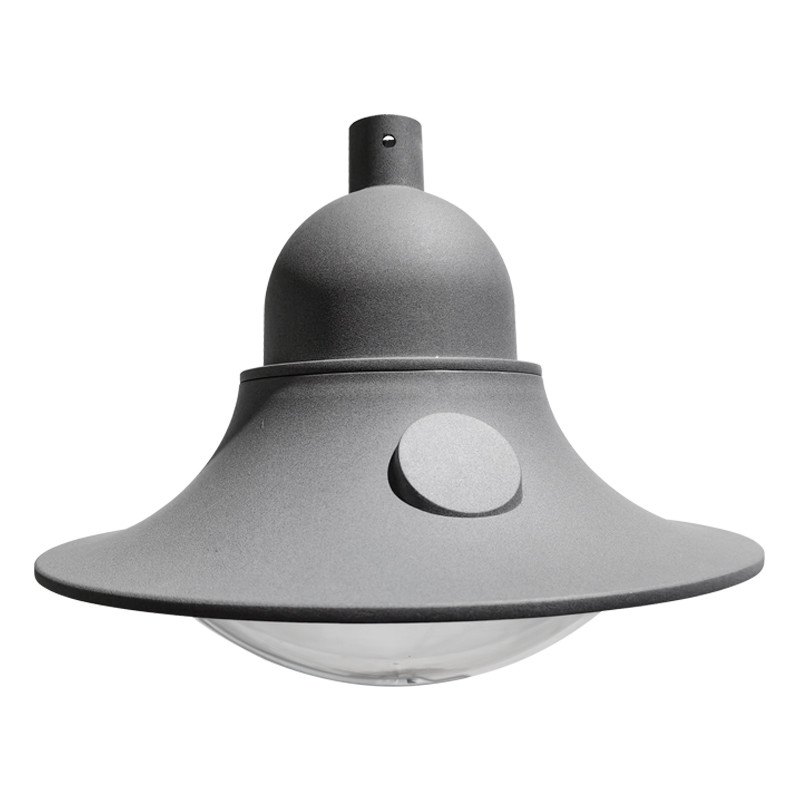

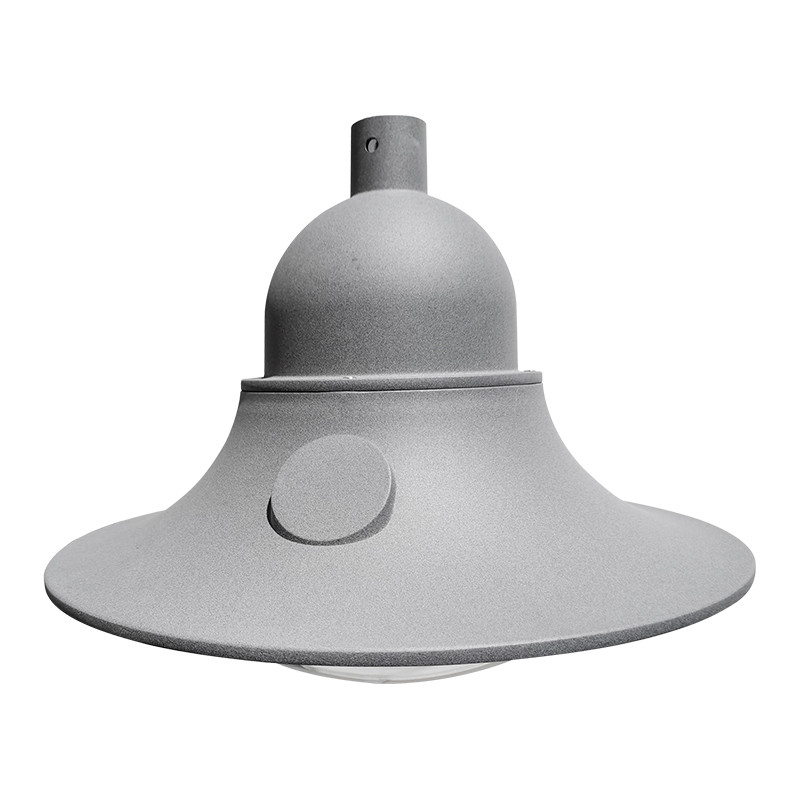

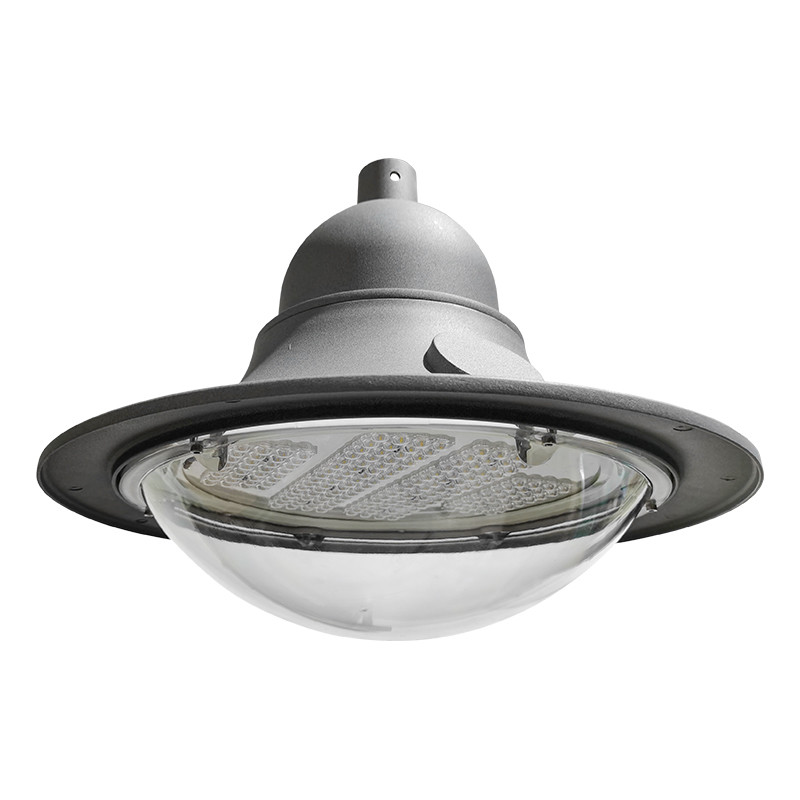

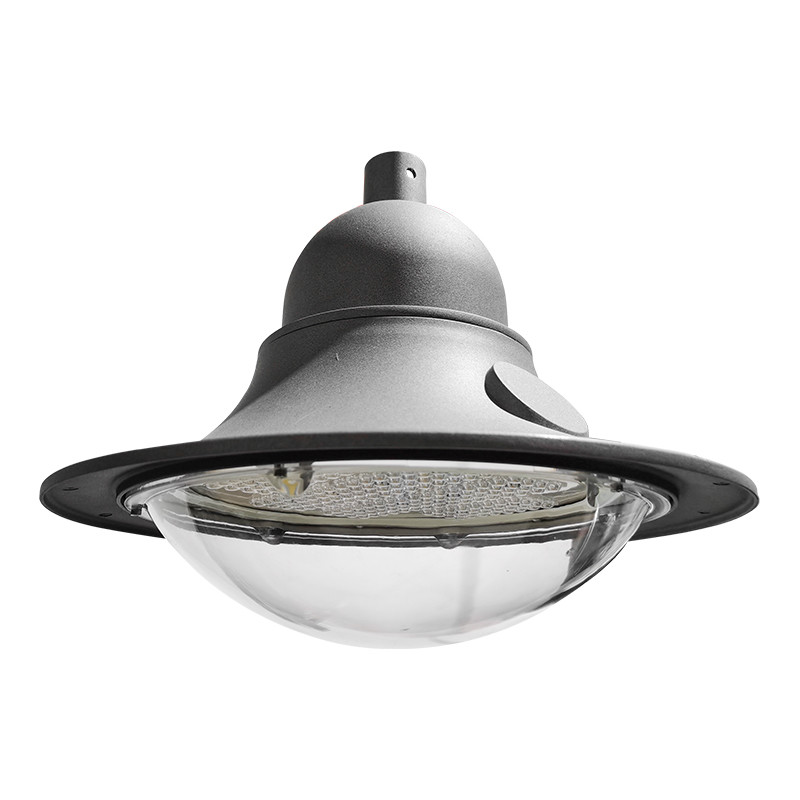

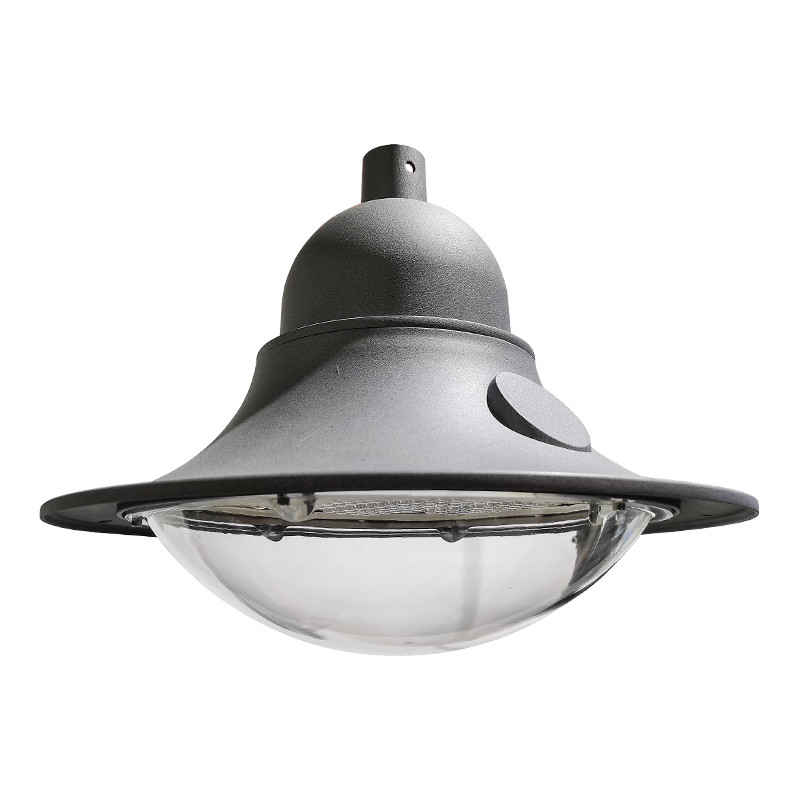

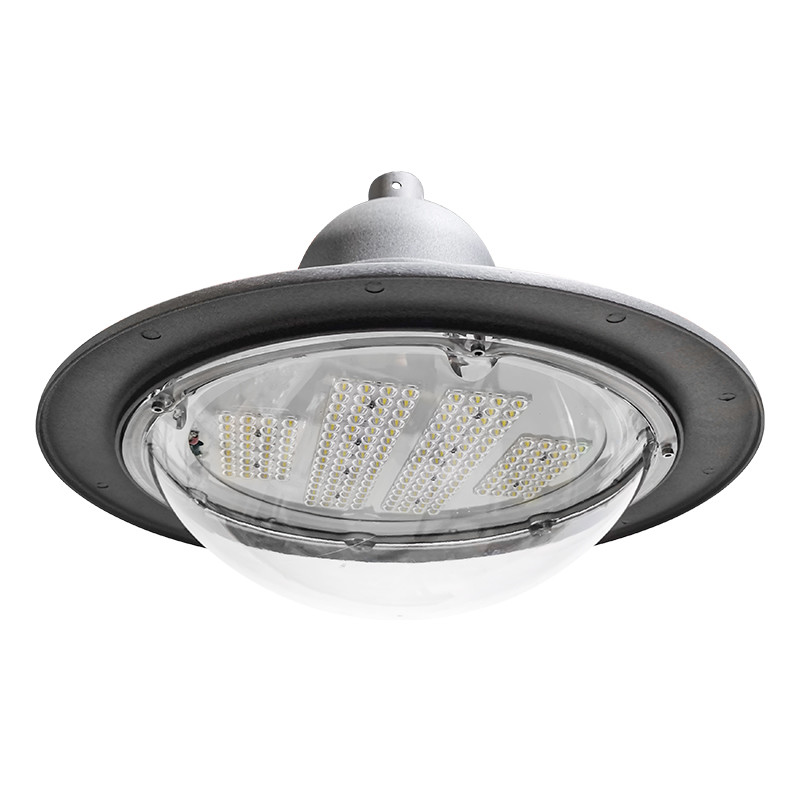

UB-GL-D32

Product:	UB-GL-D32
Classification:	LED Garden Light
Port:	Shanghai, China

Product Specifications

Light Source	30 ~ 150 Watts Optional
LED Chip	150 ~ 170 lm / W, Service life of more than 50,000 hours
LED Chip Brand	Cree, Lumileds, BridgeLux, Epistar etc Optional
Luminous Flux	4500 ~ 25500 lm
CRI	> 70 Ra
Power Factor	＞ 0.95
Color Temperature	3000 K ~ 6000 K Optional
Beam Angle	145° * 80° / 150° * 150° Optional
Input Voltage Rage	90 ~ 305 V, 50 / 60 HZ
Lightning Protection Level	10 KV
LED Driver	MeanWell, PHILIPS, Inventronics, MOSO, SOSEN etc Optional, IP 67
Lamp Shell Material	Pressure Die Casting Aluminum with Powder Coating
Installation Diameter	Φ 28 mm
IP Rating	IP 66
IK Rating	IK 09
Working Temperature	- 45℃ ~ + 60℃
Working Humidity	10% ~ 90%
Product Size	441 * 357 mm
Package Size	500 * 500 * 425 mm
Net Weight	4.6 KG
Gross Weight	6.3 KG
Number of Packing	1 Pcs / Carton
Warranty	5 Years

Features

■ The simple design of the whole lamp is beautiful and generous; at the same time it can be disassembled, the package is small in size and convenient for transportation.

■ The lamp body is made of aluminum die-casting material, galvanized and surface electrostatically sprayed, the surface is smooth and corrosion-resistant.

■ The dual diffuser illuminance diffuser makes the light more uniform, no glare, and the light is more comfortable.

■ The whole lamp has good protection performance and reaches IP66 and IK09. It has reliable performance and is not easy to be damaged.

■ Imported 3030E light source and high performance drive, stable operation, high luminous efficiency and long service life.

■ Easily handled by hand, tool free. When operation, it will be switched off. Make sure safety of the technicians.

■ It can be matched with photocell on the top, so that intelligent control can be realized.

Certificates

Application Areas

LED Garden Lights is widely used in public areas and residential areas as follows

▲ Road and Street

▲ Office Buildings

▲ Gardens, Parks

▲ Residential areas like villa and appartment or houses

FAQ

1. Can I have a sample order for led light ?

Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

2. What about the lead time ?

Sample needs 3 - 5 days, mass production time needs 1 - 2 weeks for order quantity.

3. Do you have any MOQ limit for solar lighting product order ?

No, even only buy 1 set as a sample for test is also available.

4. For sample, how do you ship the goods and how long does it take to arrive ?

We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3 - 5 days to arrive. Airline and sea shipping also optional.

5. Is it OK to print my logo on led light product ?

Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

6. What's your warranty ?

We provide 5 years warranty for the whole set lighting system, replace any damaged parts free of charge during the warranty period. but the product damage caused by force majeure is excepted.
