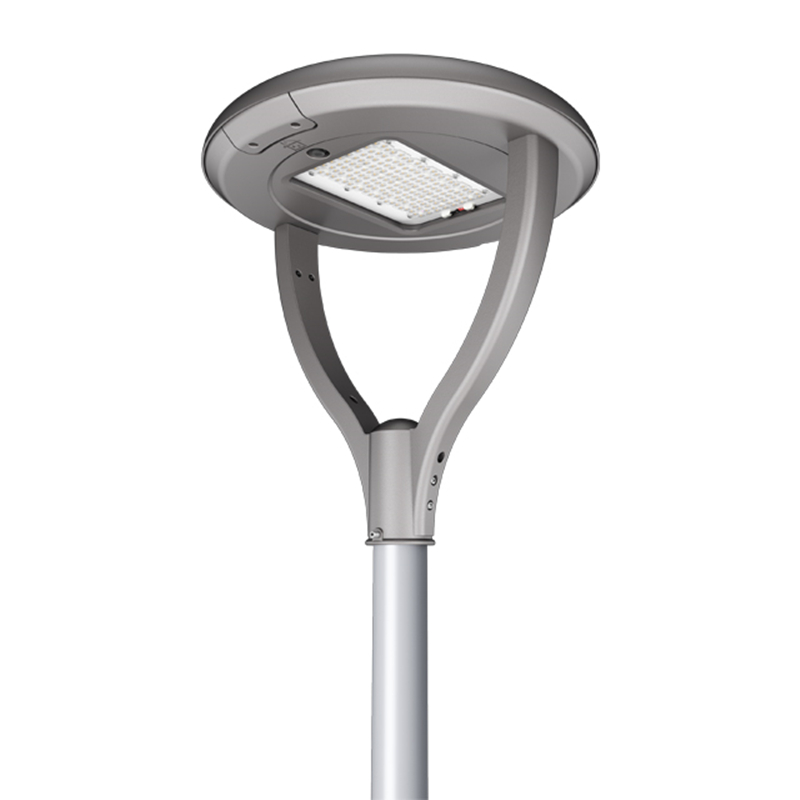

UB-GL-D26A

Product:	UB-GL-D26A
Classification:	LED Garden Light
Port:	Shanghai, China

Product Specifications

Light Source	30 ~ 120 Watts Optional
LED Chip	150 ~ 170 lm / W, Service life of more than 50,000 hours
LED Chip Brand	Cree, Lumileds, BridgeLux, Epistar etc Optional
Luminous Flux	4500 ~ 20400 lm
CRI	> 70 Ra
Power Factor	＞ 0.95
Color Temperature	3000 K ~ 6000 K Optional
Beam Angle	1M / 2M / 3M / 5S / 1M Symmetry
Input Voltage Rage	90 ~ 305 V, 50 / 60 HZ
Lightning Protection Level	10 KV
LED Driver	MeanWell, PHILIPS, Inventronics, MOSO, SOSEN etc Optional, IP 67
Lamp Shell Material	Pressure Die Casting Aluminum with Powder Coating
Installation Diameter	Φ 60 mm
IP Rating	IP 66
IK Rating	IK 08
Working Temperature	- 45℃ ~ + 60℃
Working Humidity	10% ~ 90%
Product Size	Φ 480 * H 531 mm
Package Size	495 * 495 * 170 mm
Net Weight	8.7 KG
Gross Weight	10.9 KG
Number of Packing	1 Pcs / Carton
Warranty	5 Years

Features

■ Made by die cast aluminum,surface treatment for electrostatic powder coating.

■ Top international brand LED chips ( Cree, Lumileds, BridgeLux, Epistar etc ) privide quality lighting.

■ Diffusion is made by high-strength tempered glass.

■ The reflector is made by high pure aluminum.

■ Heat resisting silicone rubber gasket.

■ Special olivary design, matching with the surrounding.

■ Use high efficient diffuser and super white transparent seal glass.

Certificates

Application Areas

LED Garden Lights is widely used in public areas and residential areas as follows

▲ Road and Street

▲ Office Buildings

▲ Gardens, Parks

▲ Residential areas like villa and appartment or houses

FAQ

1. Can I have a sample order for led light ?

Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

2. What about the lead time ?

Sample needs 3 - 5 days, mass production time needs 1 - 2 weeks for order quantity.

3. Do you have any MOQ limit for solar lighting product order ?

No, even only buy 1 set as a sample for test is also available.

4. For sample, how do you ship the goods and how long does it take to arrive ?

We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3 - 5 days to arrive. Airline and sea shipping also optional.

5. Is it OK to print my logo on led light product ?

Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

6. What's your warranty ?

We provide 5 years warranty for the whole set lighting system, replace any damaged parts free of charge during the warranty period. but the product damage caused by force majeure is excepted.
