Index > Products > LED Street Light

UB-SL-1D

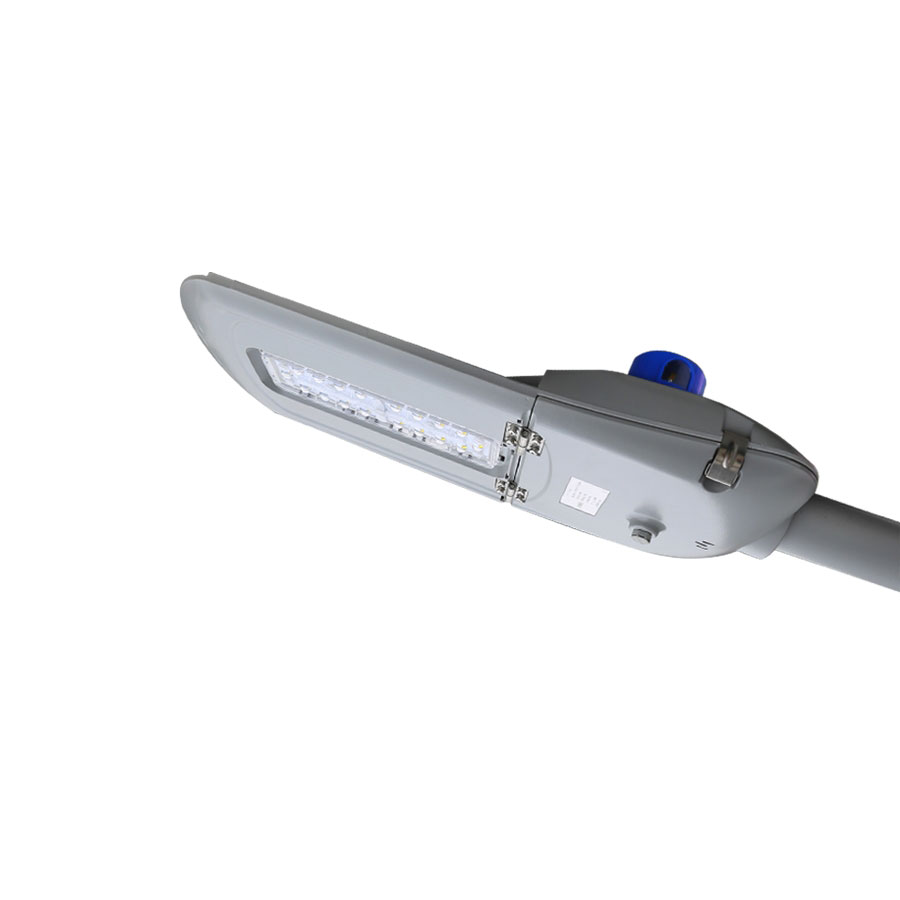

Product: UB-SL-1D
Classification: LED Street Light
Port: Shanghai, China
LED street light refers to the street light made with LED light source, which has the unique advantages of high efficiency, safety, energy saving, environmental protection, long life, fast response speed and high color rendering index, which is of great significance to the energy saving of urban lighting.LED street lamps are different from conventional street lamps in that the LED light source adopts low-voltage dc power supply and the efficient white light synthesized by GaN-based power blue LED and yellow. It has the unique advantages of high efficiency, safety, energy saving, environmental protection, long life, fast response speed and high color rendering index, which can be widely used in roads.Outer cover can be made, high temperature resistance up to 135 degrees, low temperature resistance up to -45 degrees.

Product Specifications

Light Source30 ~ 60 Watts Optional
LED Chip150 ~ 170 lm / W, Service life of more than 50,000 hours
LED Chip BrandCree, Lumileds, BridgeLux, Epistar etc Optional
Luminous Flux4500 ~ 10200 lm
CRI> 70 Ra
Power Factor> 0.95
Color Temperature3000 K ~ 6000 K Optional
Beam Angle75° * 145°
Input Voltage Rage90 ~ 305 V, 50 / 60 HZ
Lightning Protection Level10 KV
LED DriverMeanWell, PHILIPS, Inventronics, MOSO, SOSEN etc Optional, IP 67
Lamp Shell MaterialPressure Die Casting Aluminum with Powder Coating
Installation DiameterΦ 57 ~ 63 mm
IP RatingIP 68
IK RatingIK 09
Working Temperature- 45℃ ~ + 60℃
Working Humidity10% ~ 90%
Number of Packing1 Pcs / Carton
Warranty5 Years

Features

■ Lamp housing is made by die casting aluminum,electrostatic powder coating for surface treatment, with light weight, corrosion resistance, wear and other characteristics, to ensure that products to adapt to wet, hydrochloric acid environment, is also good for heat dissipation.

■ Top international brand LED chipsCree, Lumileds, BridgeLuxEpistar etc ) privide quality lighting.

Flip chip technology, single unit’s damage won't affect others' normal work.

■ Ergonomic and dedicated lighting distributions available for various roadway applications.

 Honeycomb briquette effect heat dissipation principle, best thermal management system.

■ Stainless steel latches provide easy, tool-less access to the electrical compartment.

 Designed to last at least 60,000 hours at L70.

 IP68 rated electrical compartment.

 Optional NEMA receptacle & photocell.



Certificates



Application Areas


LED Street Lights is widely used in public areas and residential areas as follows


 Road and Street


 Office Buildings


 Gardens, Parks


 Residential areas like villa and appartment or houses




FAQ


1. Can I have a sample order for led light ?

Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.


2. What about the lead time ?

Sample needs 3 - 5 days, mass production time needs 1 - 2 weeks for order quantity.


3. Do you have any MOQ limit for solar lighting product order ?

No, even only buy 1 set as a sample for test is also available.


4. For sample, how do you ship the goods and how long does it take to arrive ?

We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3 - 5 days to arrive. Airline and sea shipping also optional.


5. Is it OK to print my logo on led light product ?

Yes. Please inform us formally before our production and confirm the design firstly based on our sample.


6. What's your warranty ?

We provide 5 years warranty for the whole set lighting system, replace any damaged parts free of charge during the warranty period. but the product damage caused by force majeure is excepted.
