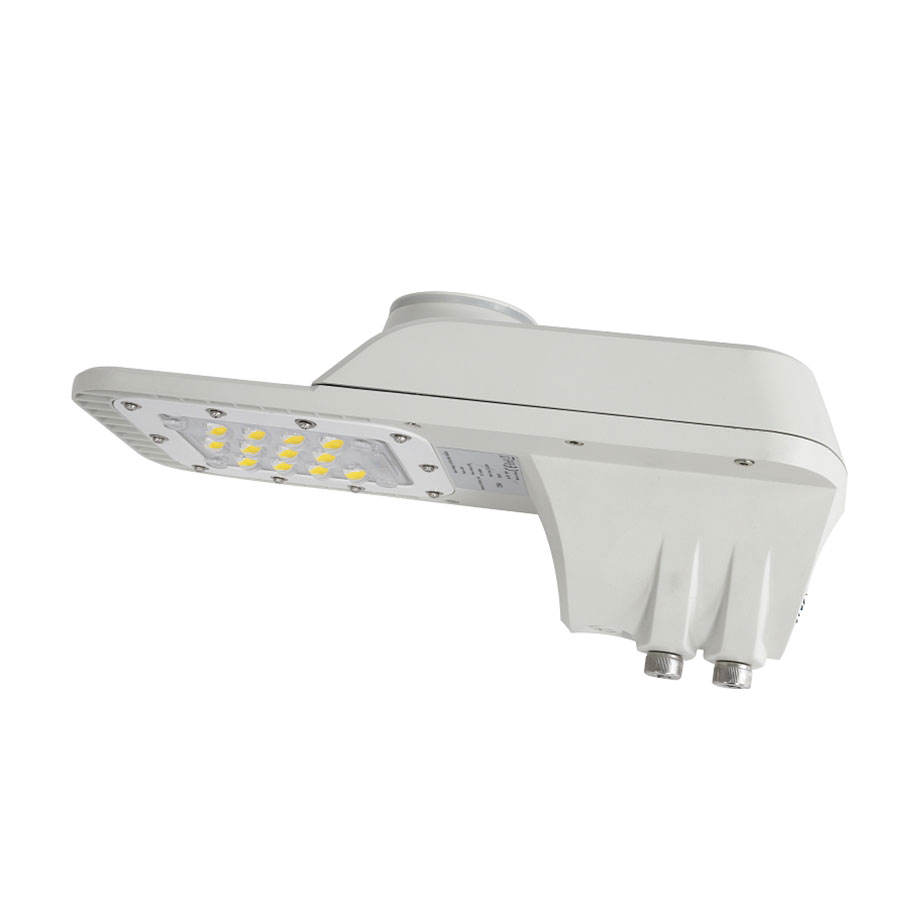

UB-SL-29A

Product:	UB-SL-29A
Classification:	LED Street Light
Port:	Shanghai, China

Product Specifications

Light Source	20 ~ 40 Watts Optional
LED Chip	150 ~ 170 lm / W, Service life of more than 50,000 hours
LED Chip Brand	Cree, Lumileds, BridgeLux, Epistar etc Optional
Luminous Flux	3000 ~ 6800 lm
CRI	> 70 Ra
Power Factor	＞ 0.95
Color Temperature	3000 K ~ 6000 K Optional
Beam Angle	75° * 145°
Input Voltage Rage	90 ~ 305 V, 50 / 60 HZ
Lightning Protection Level	10 KV
LED Driver	MeanWell, PHILIPS, Inventronics, MOSO, SOSEN etc Optional, IP 67
Lamp Shell Material	Pressure Die Casting Aluminum with Powder Coating
Installation Diameter	Φ 50 ~ 60 mm
IP Rating	IP 66
IK Rating	IK 08
Working Temperature	- 45℃ ~ + 60℃
Working Humidity	10% ~ 90%
Number of Packing	1 Pcs / Carton
Warranty	5 Years

Features

■ Lamp housing is made by die casting aluminum,electrostatic powder coating for surface treatment, with light weight, corrosion resistance, wear and other characteristics, to ensure that products to adapt to wet, hydrochloric acid environment, is also good for heat dissipation.

■ Top international brand LED chips ( Cree, Lumileds, BridgeLux, Epistar etc ) privide quality lighting.

■ Designed to last at least 60,000 hours at L70.

■ Unique patented IP68 ( highest protection level ) LED light engines.

■ Whole structure heating dissipation design with best thermal conduction and radiation.

■ Ergonomic and dedicated lighting distributions available for various roadway applications.

■ Optional NEMA receptacle & photocell / shorting cap.

Certificates

Application Areas

LED Street Lights is widely used in public areas and residential areas as follows

▲ Road and Street

▲ Office Buildings

▲ Gardens, Parks

▲ Residential areas like villa and appartment or houses

FAQ

1. Can I have a sample order for led light ?

Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

2. What about the lead time ?

Sample needs 3 - 5 days, mass production time needs 1 - 2 weeks for order quantity.

3. Do you have any MOQ limit for solar lighting product order ?

No, even only buy 1 set as a sample for test is also available.

4. For sample, how do you ship the goods and how long does it take to arrive ?

We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3 - 5 days to arrive. Airline and sea shipping also optional.

5. Is it OK to print my logo on led light product ?

Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

6. What's your warranty ?

We provide 5 years warranty for the whole set lighting system, replace any damaged parts free of charge during the warranty period. but the product damage caused by force majeure is excepted.
