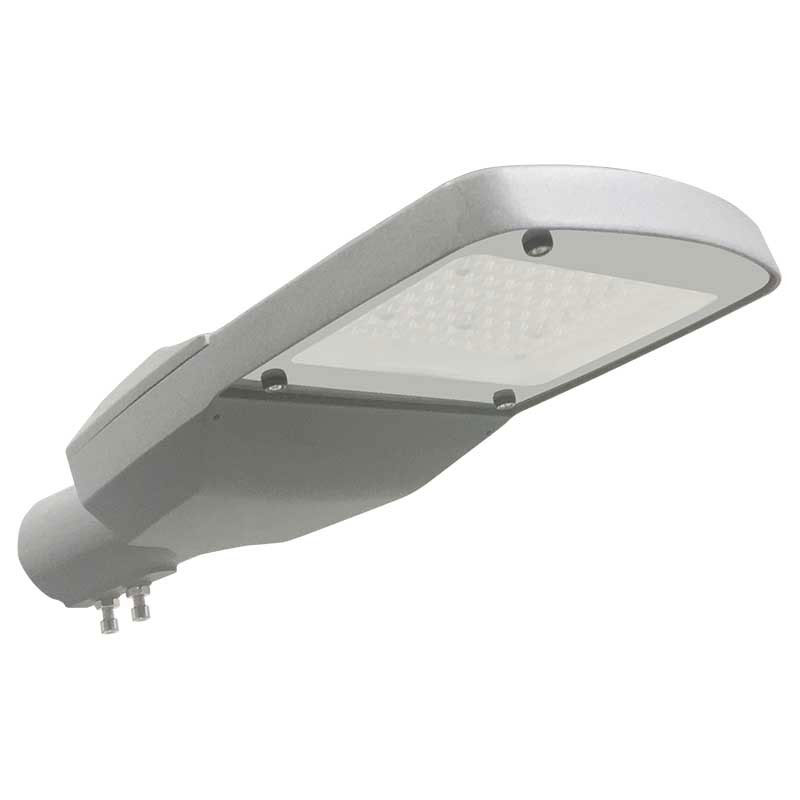

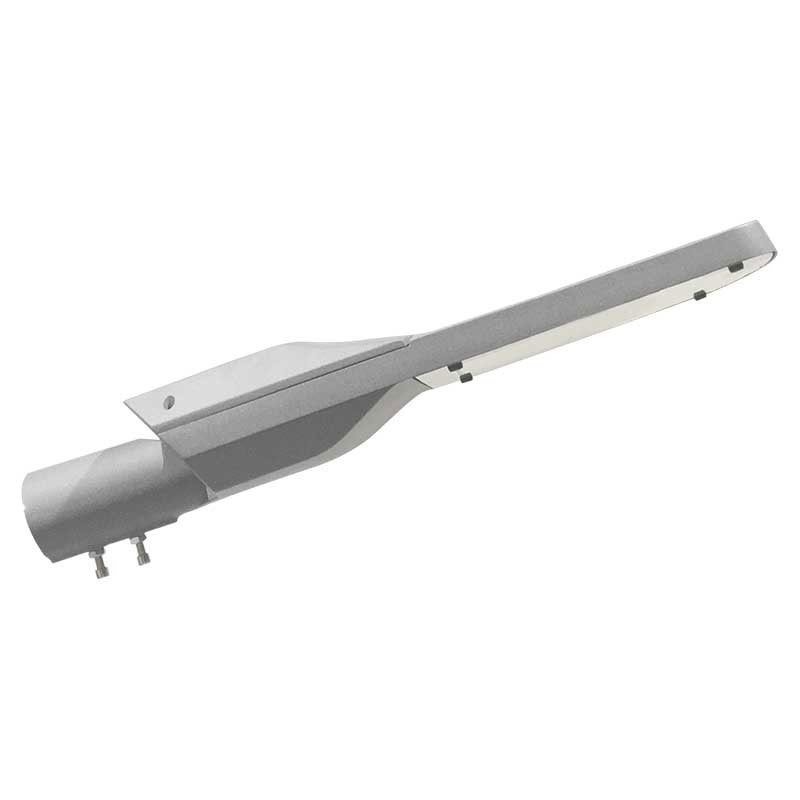

UB-SL-31

Product:	UB-SL-31
Classification:	LED Street Light
Port:	Shanghai, China

Product Specifications

Light Source	40 ~ 200 Watts Optional
LED Chip	150 ~ 170 lm / W, Service life of more than 50,000 hours
LED Chip Brand	Cree, Lumileds, BridgeLux, Epistar etc Optional
Luminous Flux	6000 ~ 34000 lm
CRI	> 70 Ra
Power Factor	＞ 0.95
Color Temperature	3000 K ~ 6000 K Optional
Beam Angle	117° * 52°
Input Voltage Rage	90 ~ 305 V, 50 / 60 HZ
Lightning Protection Level	10 KV or 20KV Optional

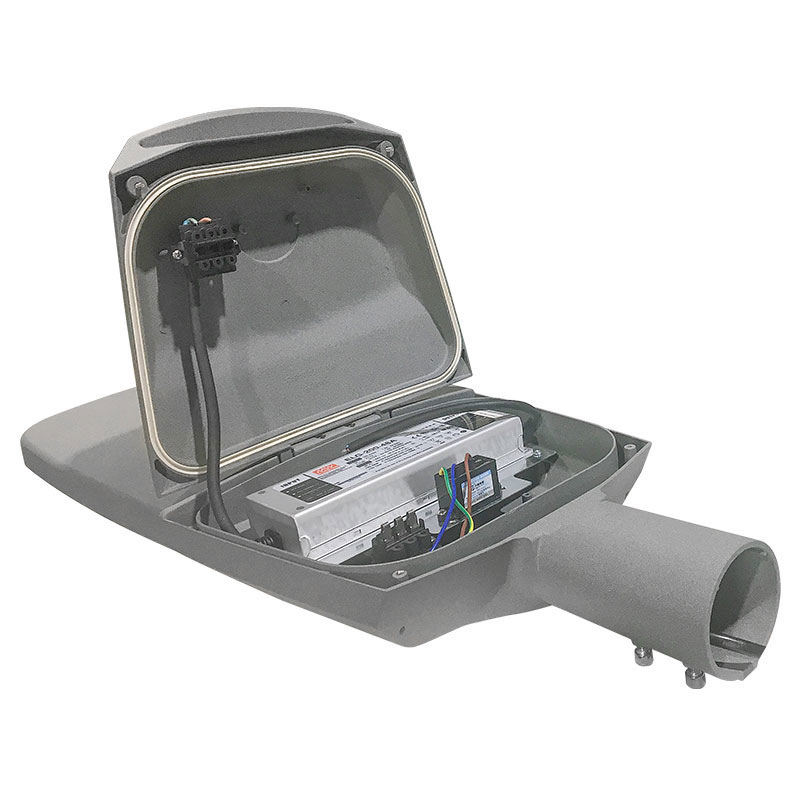

LED Driver	MeanWell, PHILIPS, Inventronics, MOSO, SOSEN etc Optional, IP 67
Lamp Shell Material	Pressure Die Casting Aluminum with Powder Coating
Installation Diameter	Φ 50 or 60 mm
IP Rating	IP 66
IK Rating	IK 09
Working Temperature	- 45℃ ~ + 60℃
Working Humidity	10% ~ 90%
Number of Packing	1 Pcs / Carton
Warranty	5 Years

Features

■ The overall ultra-thin design, elegant appearance, elegant.

■ Top international brand LED chips ( Cree, Lumileds, BridgeLux, Epistar etc ) privide quality lighting.

■ Die-casting aluminum material, hot-dip galvanized plastic spraying treatment, good anti-corrosion performance.

■ Metal connection, all stainless steel, corrosion resistant and durable.

■ Built-in nano PC reflector can improve the overall light efficiency of the lamp by more than 5%.

■ Set the level, which can accurately position, to ensure that the installation of the lamp will not tilt.

■ Adopt high quality SMD3030 chip and high performance constant current drive, with stable overall performance and long service life.

■ Set the level, which can accurately position, to ensure that the installation of the lamp will not tilt.

■ There are various installation methods to connect with the lamp pole, such as round tube, square tube, bracket, etc., and the lamp holder is adjustable from 0 to 90°.

Certificates

Application Areas

LED Street Lights is widely used in public areas and residential areas as follows

▲ Road and Street

▲ Office Buildings

▲ Gardens, Parks

▲ Residential areas like villa and appartment or houses

FAQ

1. Can I have a sample order for led light ?

Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

2. What about the lead time ?

Sample needs 3 - 5 days, mass production time needs 1 - 2 weeks for order quantity.

3. Do you have any MOQ limit for solar lighting product order ?

No, even only buy 1 set as a sample for test is also available.

4. For sample, how do you ship the goods and how long does it take to arrive ?

We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3 - 5 days to arrive. Airline and sea shipping also optional.

5. Is it OK to print my logo on led light product ?

Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

6. What's your warranty ?

We provide 5 years warranty for the whole set lighting system, replace any damaged parts free of charge during the warranty period. but the product damage caused by force majeure is excepted.
