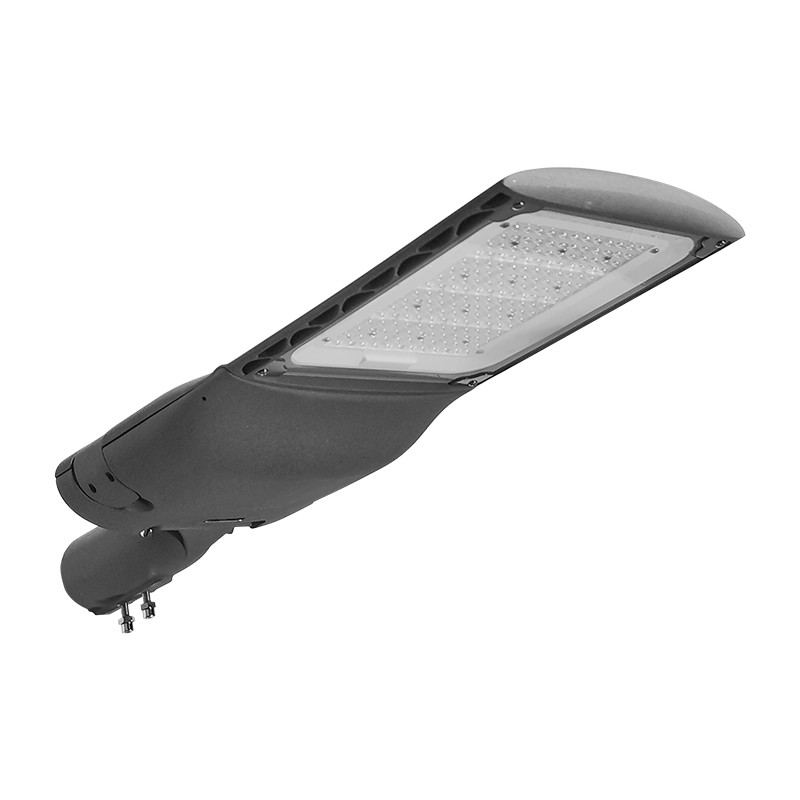

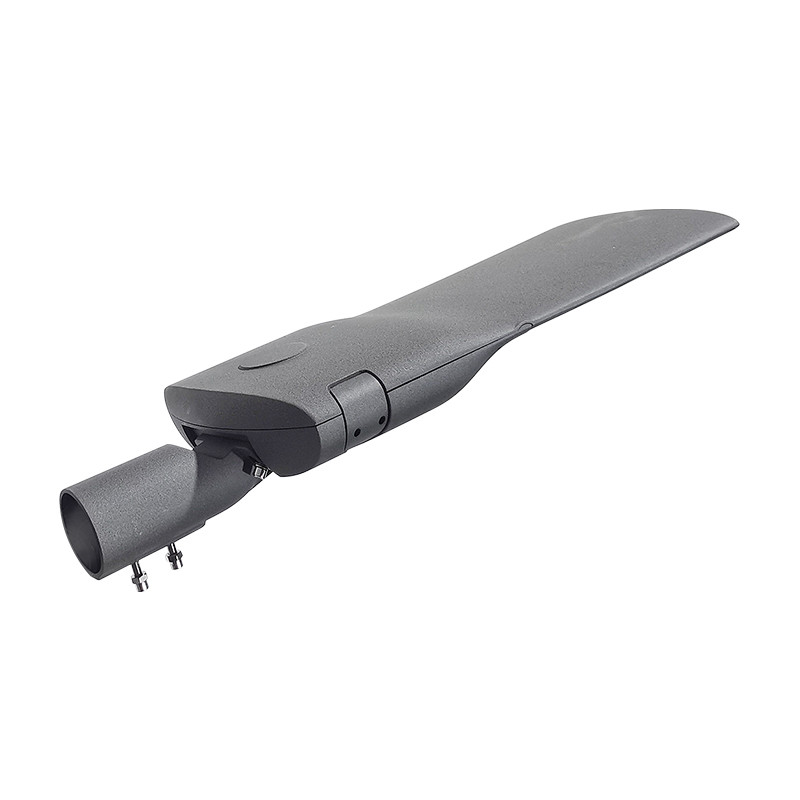

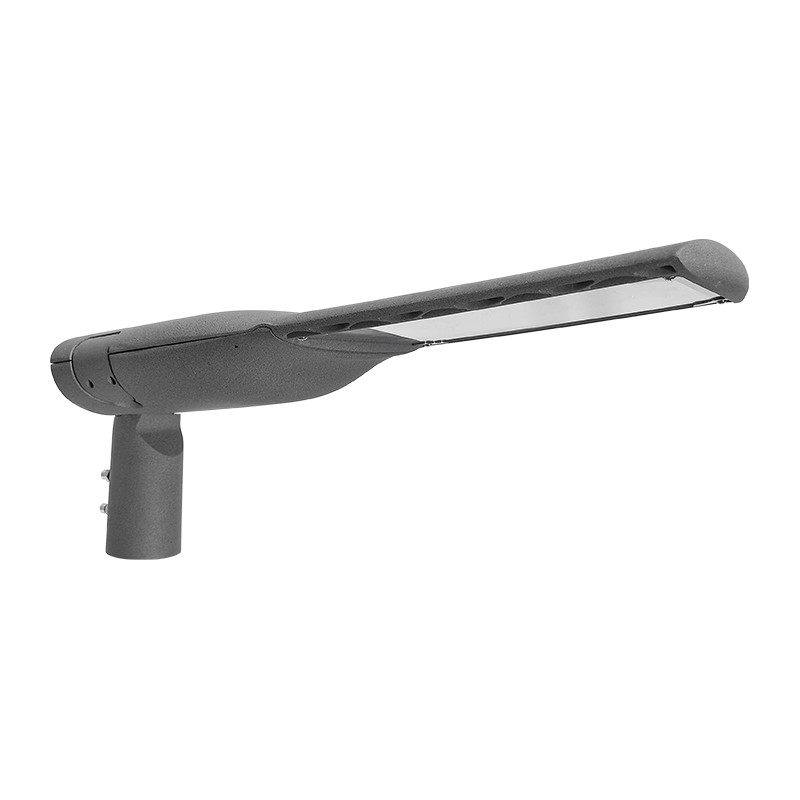

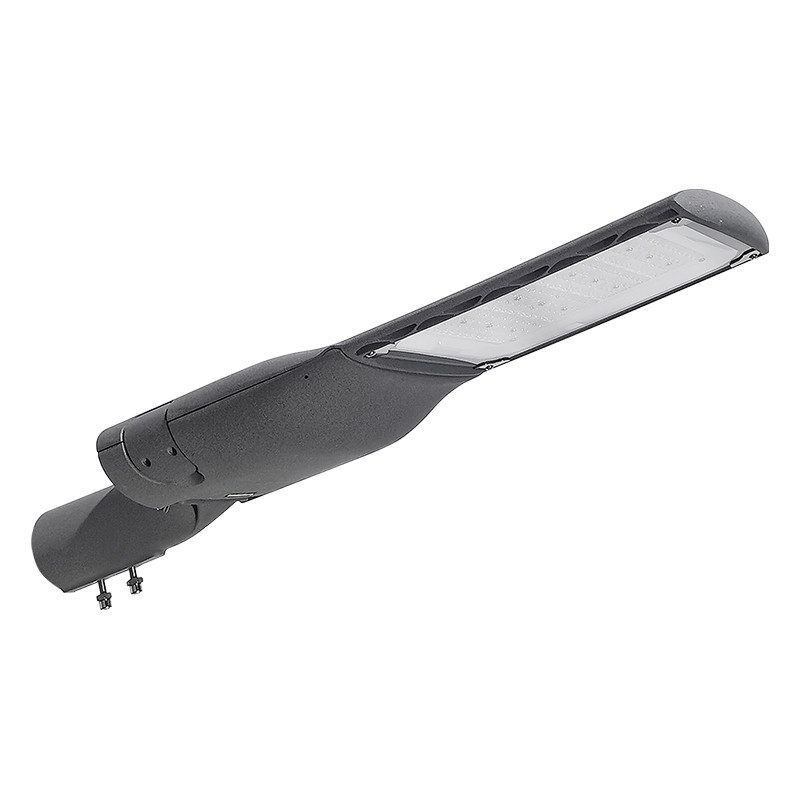

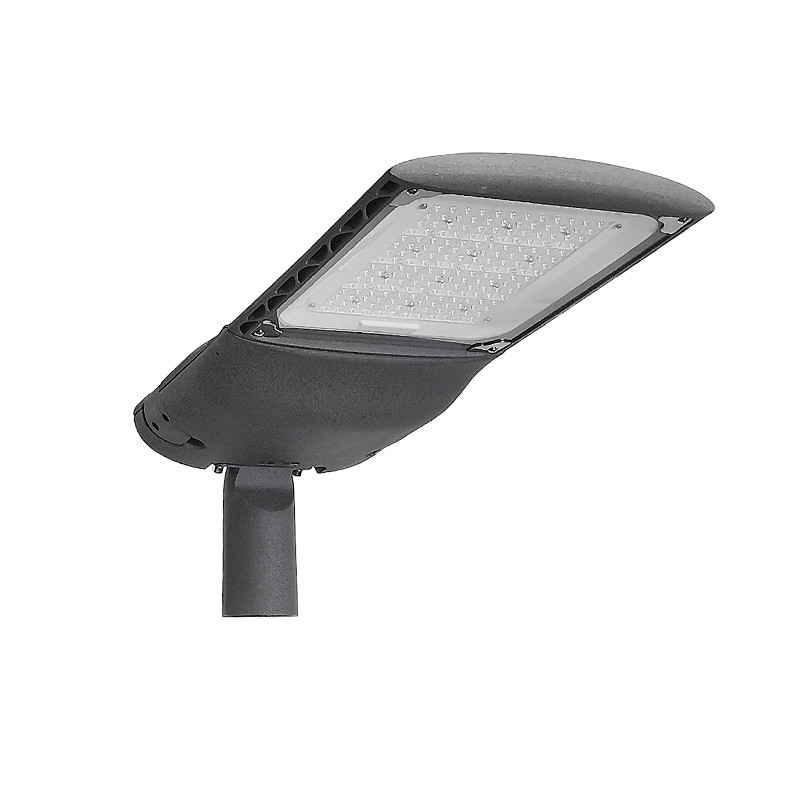

UB-SL-33

Product:	UB-SL-33
Classification:	LED Street Light
Port:	Shanghai, China

Product Specifications

Light Source	40 ~ 200 Watts Optional
LED Chip	150 ~ 170 lm / W, Service life of more than 50,000 hours
LED Chip Brand	Cree, Lumileds, BridgeLux, Epistar etc Optional
Luminous Flux	6000 ~ 34000 lm
CRI	> 70 Ra
Power Factor	＞ 0.95
Color Temperature	3000 K ~ 6000 K Optional
Beam Angle	145° * 80°
Input Voltage Rage	90 ~ 305 V, 50 / 60 HZ
Lightning Protection Level	10 KV or 20 KV
LED Driver	MeanWell, PHILIPS, Inventronics, MOSO, SOSEN etc Optional, IP 67
Lamp Shell Material	Pressure Die Casting Aluminum with Powder Coating
Installation Diameter	Φ 60 mm
IP Rating	IP 66
IK Rating	IK 09
Working Temperature	- 45℃ ~ + 60℃
Working Humidity	10% ~ 90%
Number of Packing	1 Pcs / Carton
Warranty	5 Years

Features

■ The overall flat ultra-thin design, exquisite appearance, generous and elegant.

■ Top international brand LED chips ( Cree, Lumileds, BridgeLux, Epistar etc ) privide quality lighting.

■ Die-cast aluminum material, hot-dip galvanized and spray-treated, good anti-corrosion performance.

■ Waterproof design with exquisite structure, protection grade up to IP66.

■ Light controller can be installed to facilitate light control and other intelligent control.

■ Equipped with nano material reflector, the light reflection efficiency is increased to more than 90%.

■ Equipped with a spirit level for easy installation and effective horizontal angle calibration.

■ With movable handle, the installation angle is adjustable from 0 to 90 °; the lamp housing can be opened manually, and the power is automatically cut off for easy maintenance.

■ Using LUMILEDS SMD3030 or SMD5050 light source, and high-performance constant current drive, stable overall performance, high light efficiency, small light attenuation, long service life.

Certificates

Application Areas

LED Street Lights is widely used in public areas and residential areas as follows

▲ Road and Street

▲ Office Buildings

▲ Gardens, Parks

▲ Residential areas like villa and appartment or houses

FAQ

1. Can I have a sample order for led light ?

Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

2. What about the lead time ?

Sample needs 3 - 5 days, mass production time needs 1 - 2 weeks for order quantity.

3. Do you have any MOQ limit for solar lighting product order ?

No, even only buy 1 set as a sample for test is also available.

4. For sample, how do you ship the goods and how long does it take to arrive ?

We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3 - 5 days to arrive. Airline and sea shipping also optional.

5. Is it OK to print my logo on led light product ?

Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

6. What's your warranty ?

We provide 5 years warranty for the whole set lighting system, replace any damaged parts free of charge during the warranty period. but the product damage caused by force majeure is excepted.
