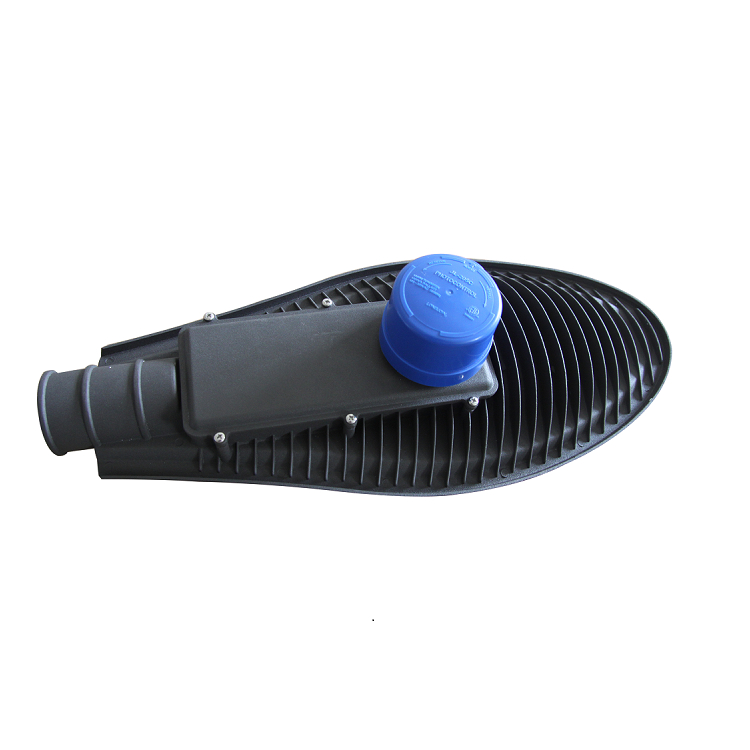

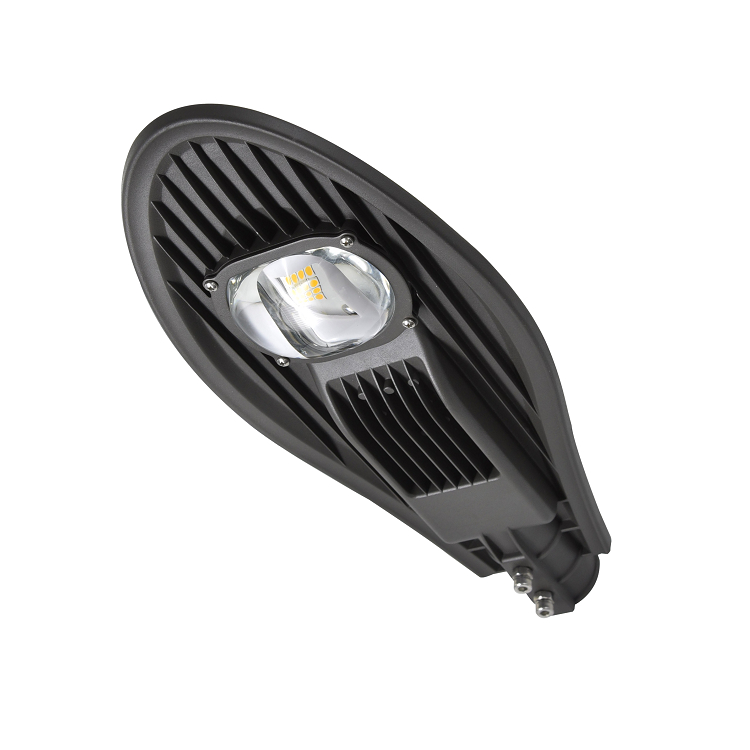

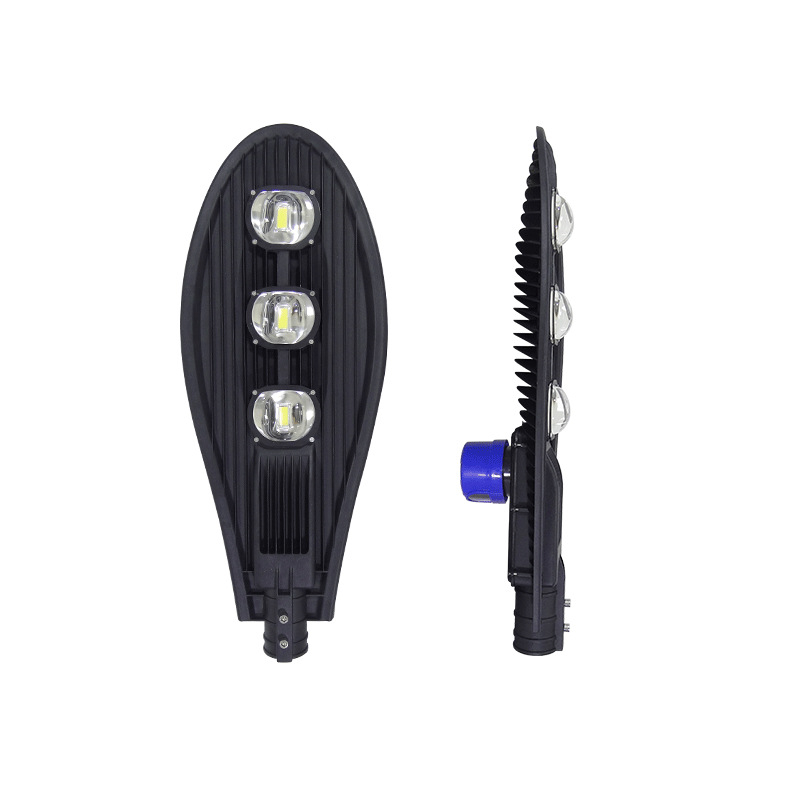

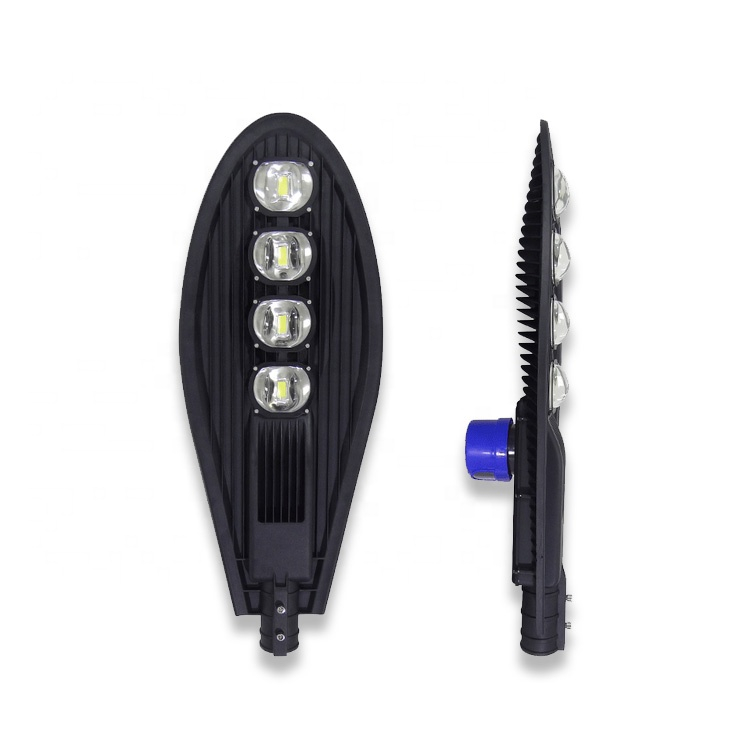

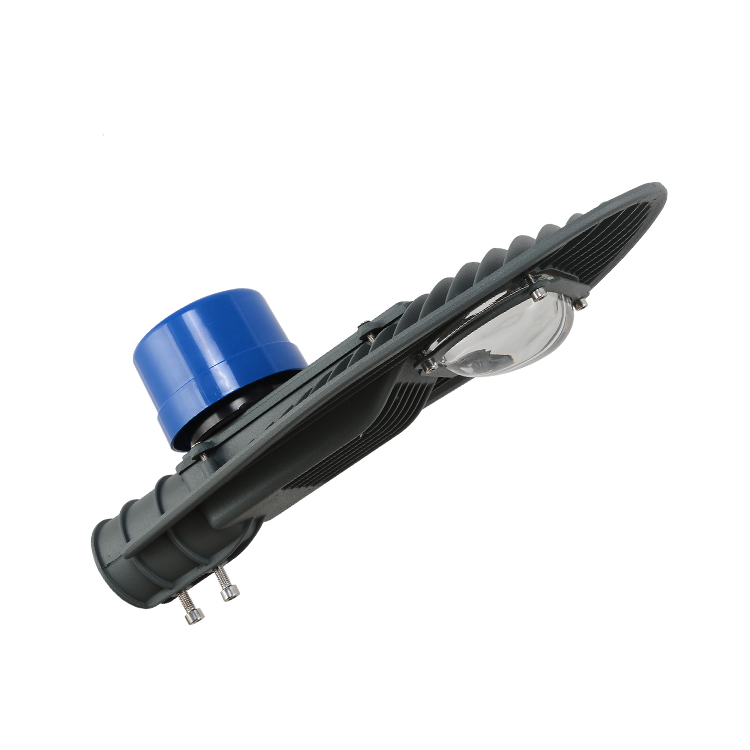

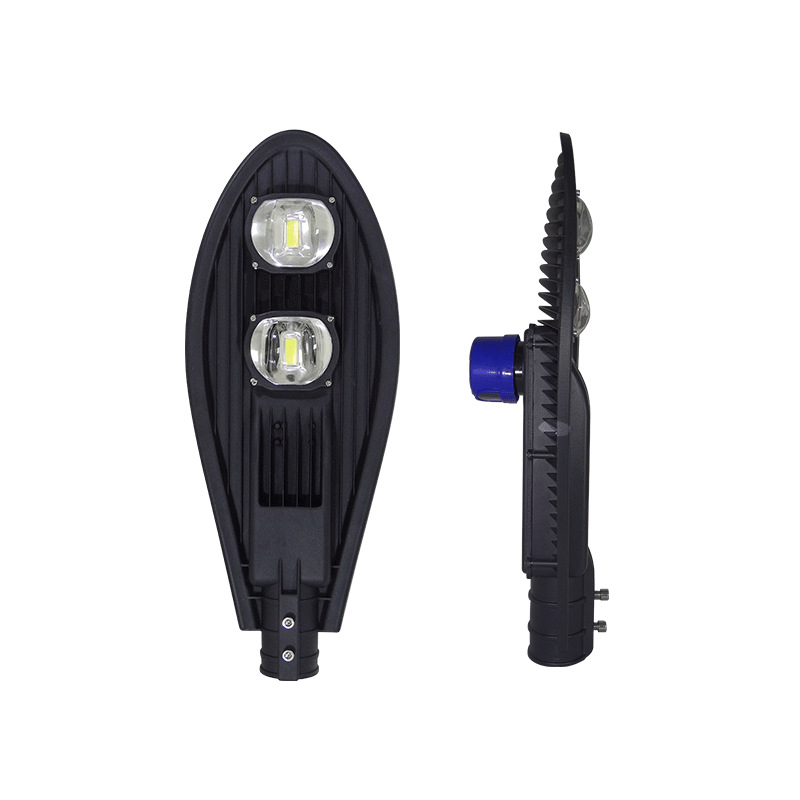

UB-SL-15B

Product:	UB-SL-15B
Classification:	LED Street Light
Port:	Shanghai, China

Product Specifications

Light Source	20 ~ 200 Watts Optional
LED Chip	150 ~ 170 lm / W, Service life of more than 50,000 hours
LED Chip Brand	Cree, Lumileds, BridgeLux, Epistar etc Optional
Luminous Flux	3000 ~ 34000 lm
CRI	> 70 Ra
Power Factor	＞ 0.95
Color Temperature	3000 K ~ 6000 K Optional
Beam Angle	90° * 120°
Input Voltage Rage	90 ~ 305 V, 50 / 60 HZ
Lightning Protection Level	10 KV
LED Driver	MeanWell, PHILIPS, Inventronics, MOSO, SOSEN etc Optional, IP 67
Lamp Shell Material	Pressure Die Casting Aluminum with Powder Coating
Installation Diameter	Φ 50 ~ 60 mm
IP Rating	IP 65
IK Rating	IK 08
Working Temperature	- 45℃ ~ + 60℃
Working Humidity	10% ~ 90%
Number of Packing	1 Pcs / Carton
Warranty	5 Years

Features

■ The lamp body is die-casted by high-grade aluminum die-casting and anodized, which has good anti-corrosion performance; fin-type heat dissipation structure, large heat dissipation area, good heat dissipation and timely effect, ensuring long life of light source.

■ Top international brand LED chips ( Cree, Lumileds, BridgeLux, Epistar etc ) privide quality lighting.

■ Designed to last at least 60,000 hours at L70.

■ The lamp body adopts streamlined design with small wind resistance coefficient; the overall structure design is full of beauty.

■ Using high-quality glass lens, the light transmittance is over 95%, higher than ordinary PMMA and PC lens; high temperature resistance, no softening and aging problems, stable performance; good light distribution, wide formation Batwing lighting effect, road lighting uniformity is good.

■ The lamp interface and the light source are locked by hexagonal stainless steel screws, and the sealing performance is good; and the overall joint is very firm, and there is no looseness or corrosion of the parts.

■ Tool-less access, easy installation and maintenance.

Certificates

Application Areas

LED Street Lights is widely used in public areas and residential areas as follows

▲ Road and Street

▲ Office Buildings

▲ Gardens, Parks

▲ Residential areas like villa and appartment or houses

FAQ

1. Can I have a sample order for led light ?

Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

2. What about the lead time ?

Sample needs 3 - 5 days, mass production time needs 1 - 2 weeks for order quantity.

3. Do you have any MOQ limit for solar lighting product order ?

No, even only buy 1 set as a sample for test is also available.

4. For sample, how do you ship the goods and how long does it take to arrive ?

We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3 - 5 days to arrive. Airline and sea shipping also optional.

5. Is it OK to print my logo on led light product ?

Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

6. What's your warranty ?

We provide 5 years warranty for the whole set lighting system, replace any damaged parts free of charge during the warranty period. but the product damage caused by force majeure is excepted.
