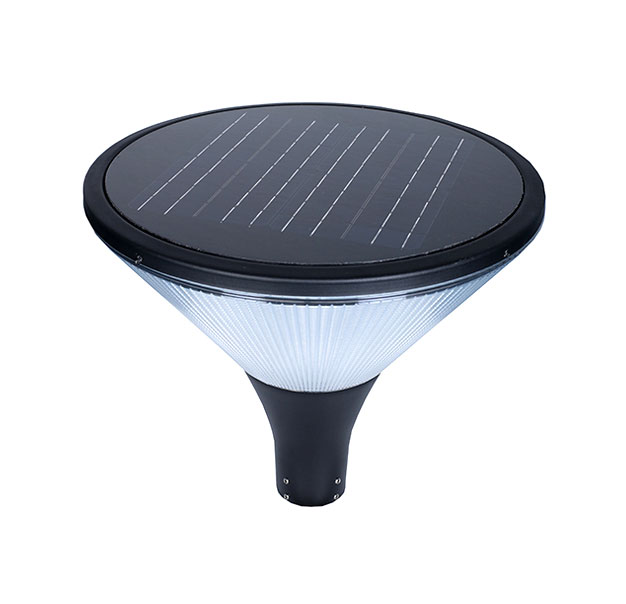

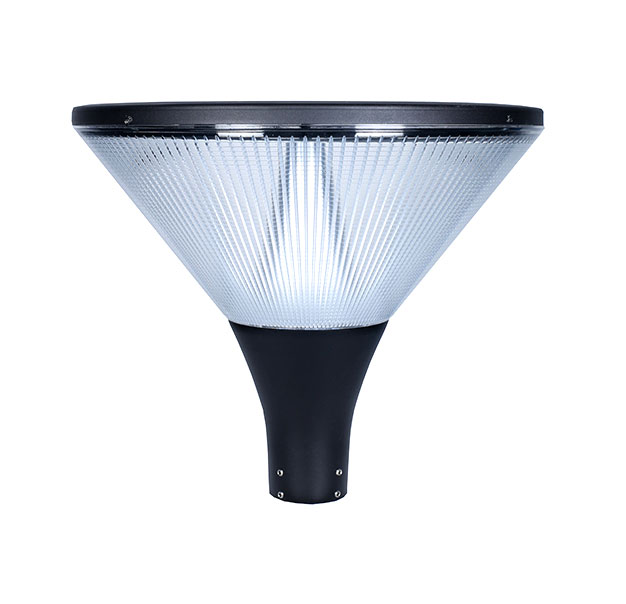

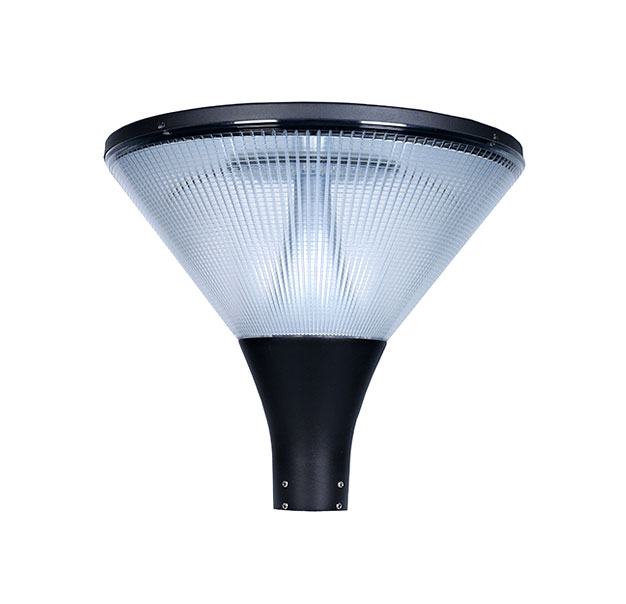

Product: | 12W Solar Garden Light |
---|---|
Classification: | Solar Garden Light |
Port: | Shanghai, China |
Light Source | 12 Watts |
Luminous Flux | 1800 ~ 2040 lm |
LED Chip | Cree, Lumileds, BridgeLux, Epistar etc Optional, 150 ~ 170 Lm / W, Service life of more than 50,000 hours |
Beam Angle | 120° |
Color Temperature | 3000 K ~ 6500 K optional |
Solar Panels | 5V / 25W, High Efficiency Monocrystalline Solar Panel, Grade A, Service life 25 years |
Battery | 3.2V / 40Ah, LiFePO4 battery, More than 2500 deep cycles, Service life 7 ~ 8 years |
Charging Time | 6h ( AM 1.5, 1000W / ㎡, 25℃ ) |
Controller Type | Intelligent, IP 68 |
Controller Mode | Light and Time Control |
Lighting Time | More than 18 hours |
Rainy Days Back up | 3 ~ 5 days |
Installation Height | 2 ~ 3 M |
Space Between Light | 8 ~ 10 M |
Diameter of Light Pole | 76 mm |
Case Material | High Quality Integrated Die Casting Aluminum Alloy Shell ( 6063 Aluminum ) + PC |
IP Rating | IP 65 |
IK Rating | IK 08 |
Working Temperature | - 25℃ to + 65℃ |

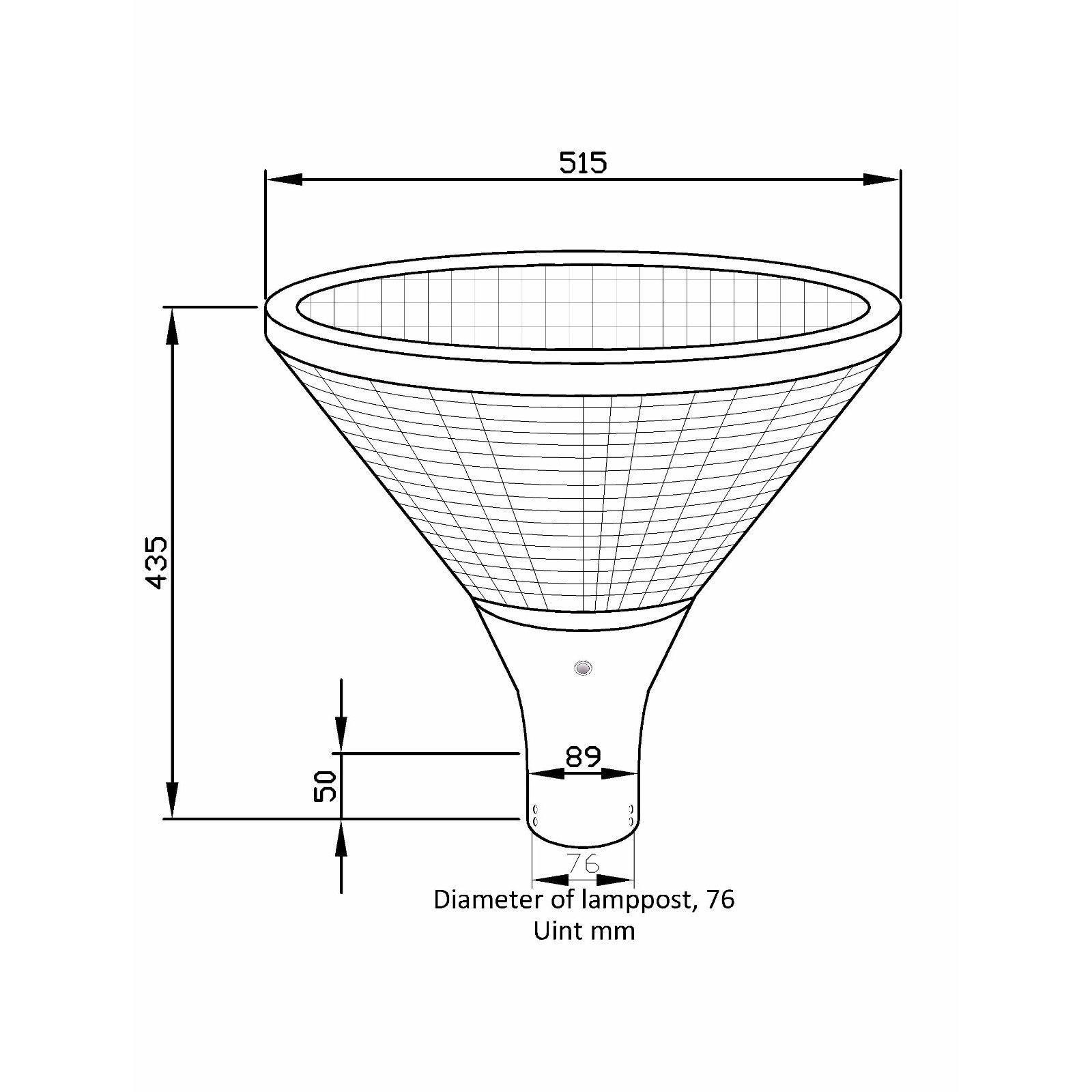

Product Size | Φ515 * 415 mm |
Packing Size | 570 * 570 * 530 mm |
Number of Packing | 1 Pcs / Carton |
Net Weight | 6.4 KG |
Gross Weight | 8.2 KG |
Package Quantity | 160 pcs / 20' GP , 340 pcs / 40' GP |
Warranty | 5 Years |
■ Integration design, solar panel, led chips, battery, controller, motion sensor etc, all in on one lighting product, without extra cable, save shipping cost and labour cost.
■ Perfect combination of solar power and LED lighting, using solar power generation system, pure green energy, inexhaustible, environmental protection.
■ We use A-grade Monocrystalline Solar Panels to gain the max solar energy, because high efficiency solar panels can ensure fast charging ( The solar cells used in our solar lighting products are all from the top international brands, such as JinKo, Trina, GCL, LONGi, JA Solar etc, the conversion rate is over 21% ).
■ Top international brand LED chips ( Cree, Lumileds, BridgeLux, Epistar etc ) privide quality lighting.
■ Products shell with high quality aluminium alloy material, with light weight, corrosion resistance, wear and other characteristics, to ensure that products to adapt to wet, hydrochloric acid environment, is also good for heat dissipation.
■ Using high capacity and long life of LiFePO4 battery, 7 ~ 8 years working life and high-temperature resistance, make the whole light a longer life. even if the LiFePO4 battery internal or external damage, the battery doesn't burn, don't explode, good safety.
■ Safe and reliable rain proof & water proof design, the control system is also made of industrial grade components, adapts to all kinds of harsh environments, and ensures that the lights are bright every day.
■ No need of cable installation. installation, maintenance and replacement is convenient and quick.
■ Extensively applied in the roads such as main roads, expressways, streets, flyovers and pavements and other areas that need outdoor lighting, such as aquares, schools, residential quarters, industrial areas and parks.
Certificates

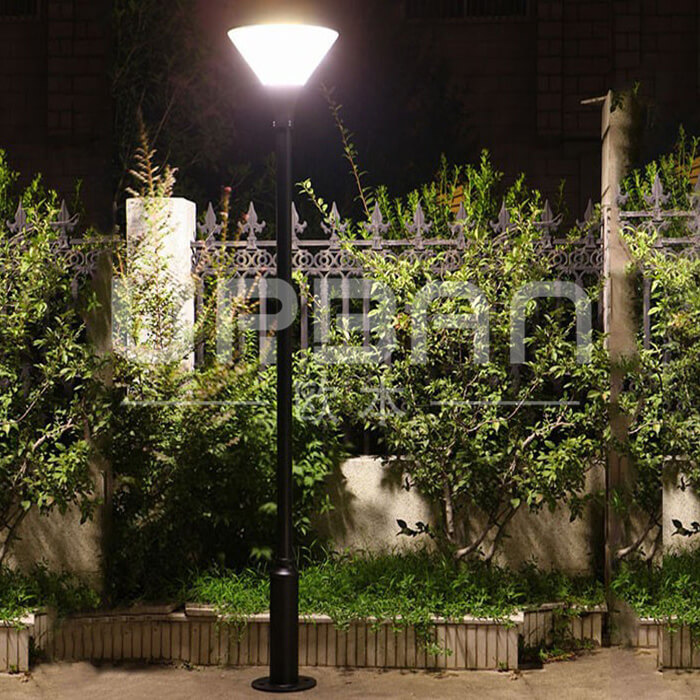

Application Areas
Solar Garden Light is widely used in public areas and residential areas as follows
▲ Road and street
▲ Office buildings
▲ Gardens, parks
▲ Residential areas like villa and appartment or houses
FAQ
1. How does the light work ?
During the daytime, the solar panel will gain the power from the sun and charge the battery, when night comes, the light will automaticlly turn on, the battery inside will provide the energy to the light.
2. How many hours can the light work ?
Normally, after fully charged, the light can work ≥ 18h.
3. How many rainy days can the light work ?
The light can work for 3 ~ 5 rainy days.
4. Is the battery replaceable ?
Yes. The battery inside is easy to replace. If the battery broken during the warranty period, we will offer you free replacement.
5. Can we buy samples ?
Yes. we welcome sample order to test and check quality. We will recommend you the suitable models according to your areas.
6. Do you have any MOQ limit for solar lighting product order ?
No, even only buy 1 pcs as a sample for test is also available.
7. What about the lead time ?
Sample needs 3 ~ 5 days, mass production time needs 1 ~ 2 weeks for order quantity.
8. Is it OK to print our company logo on package ?
Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
9. What's your warranty ?
We provide 5 years warranty for the whole product, replace any damaged parts or whole product free of charge during the warranty period. but the product damage caused by force majeure is excepted.
