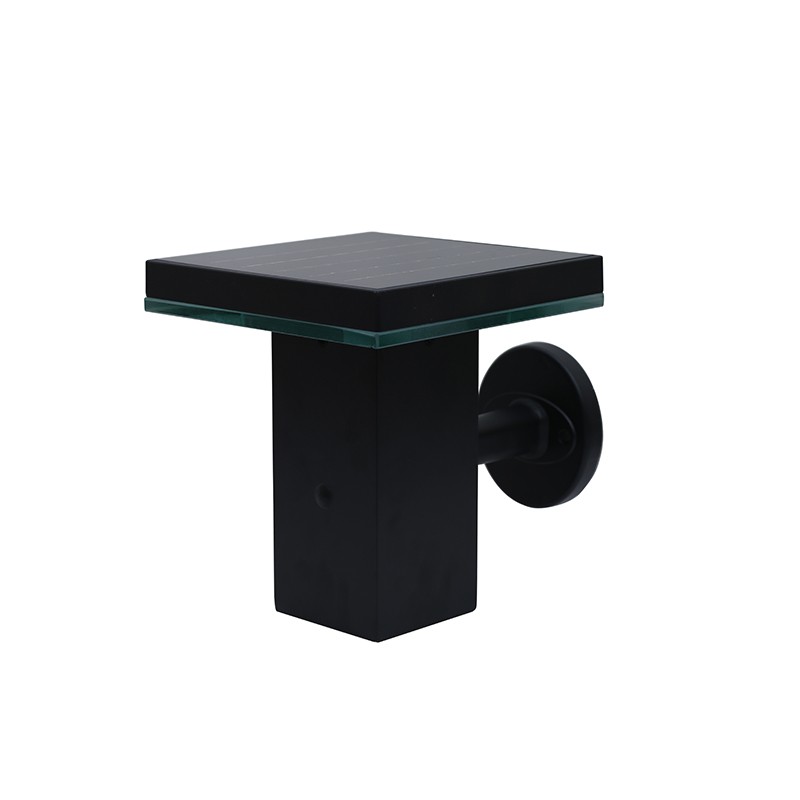

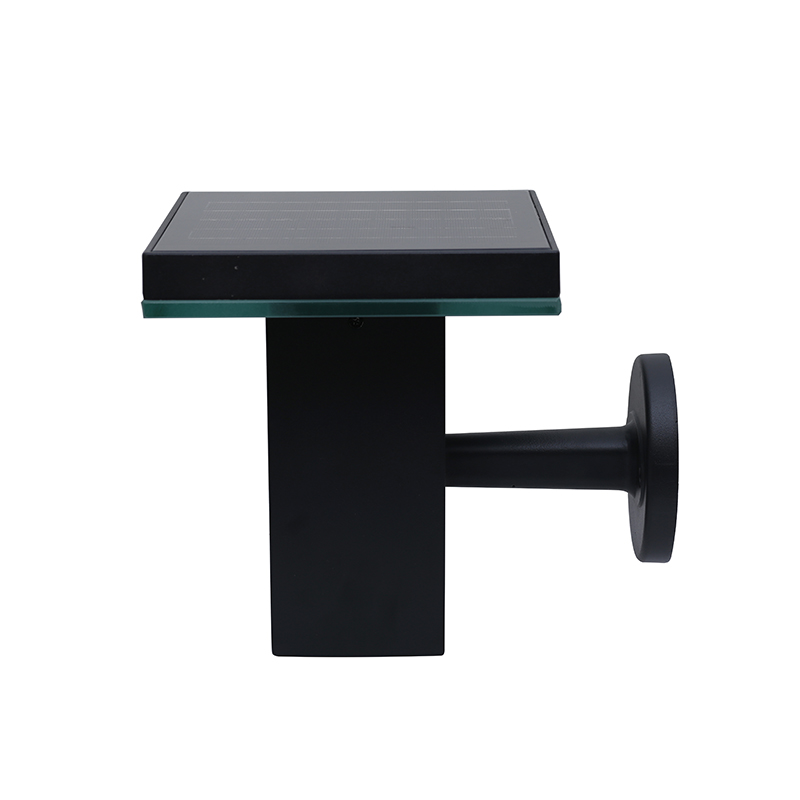

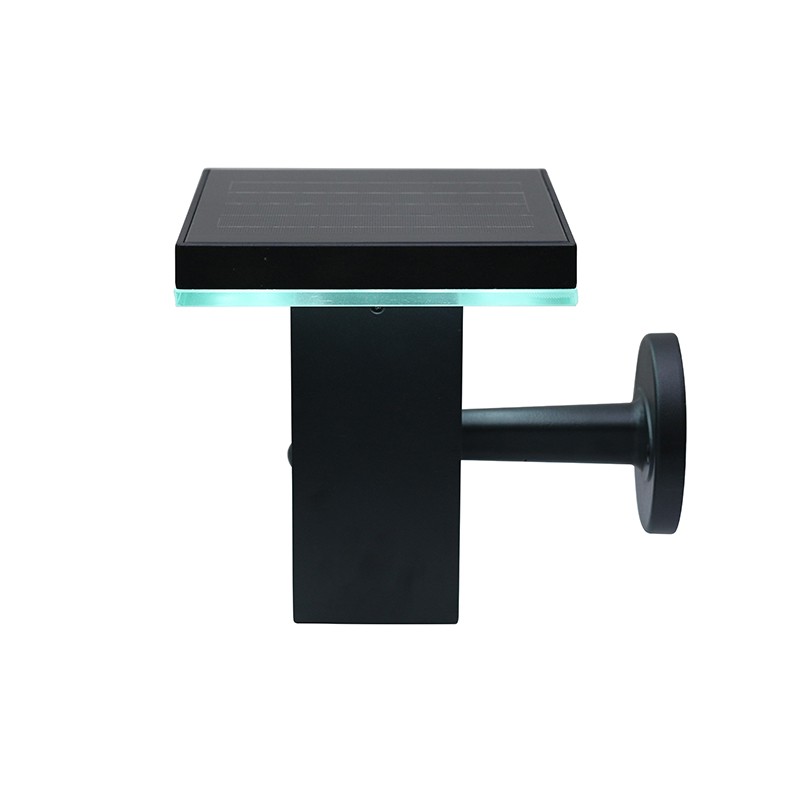

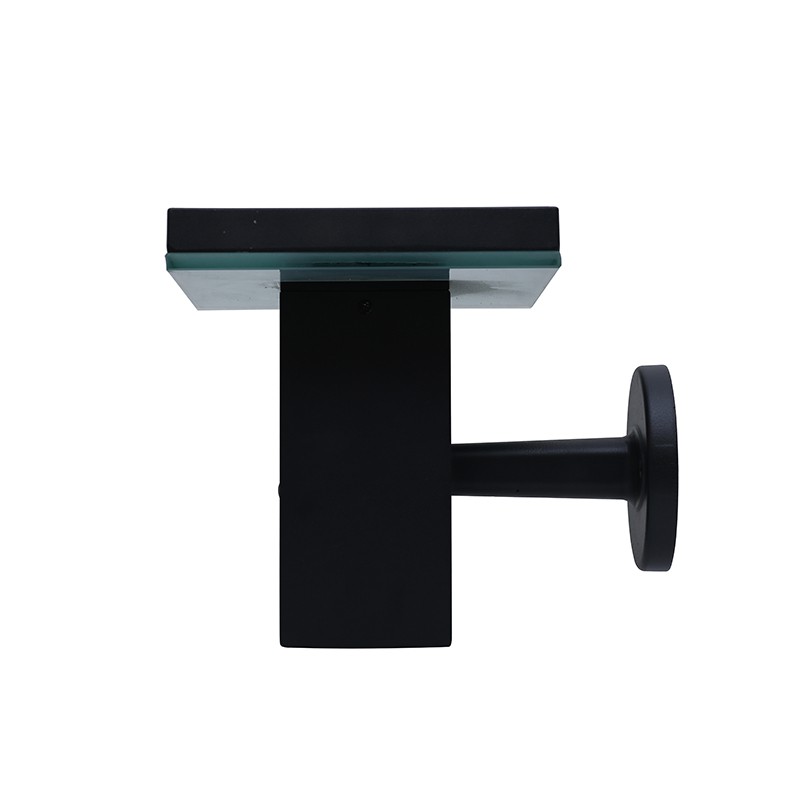

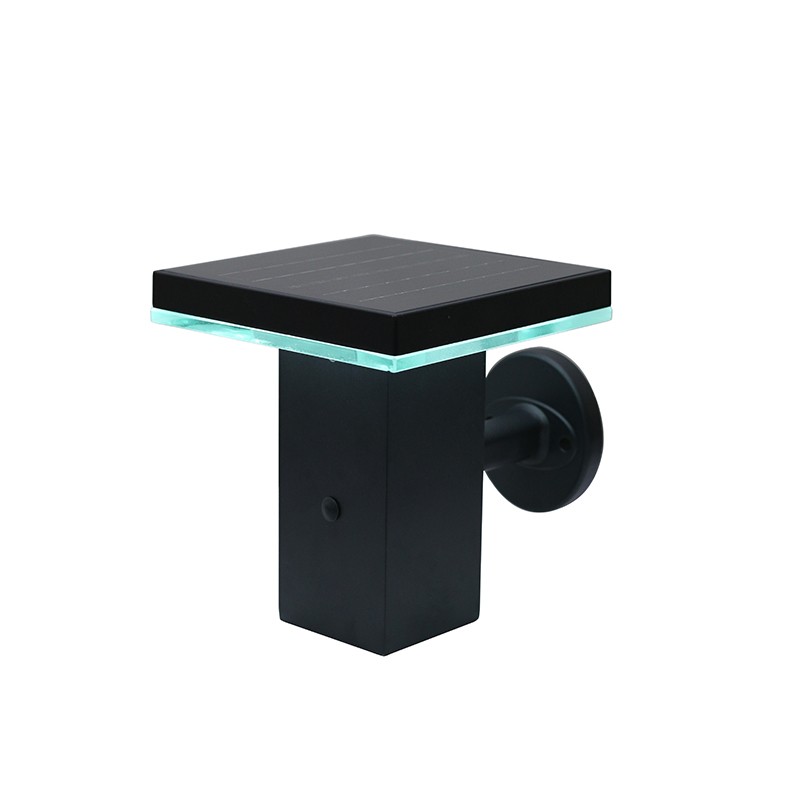

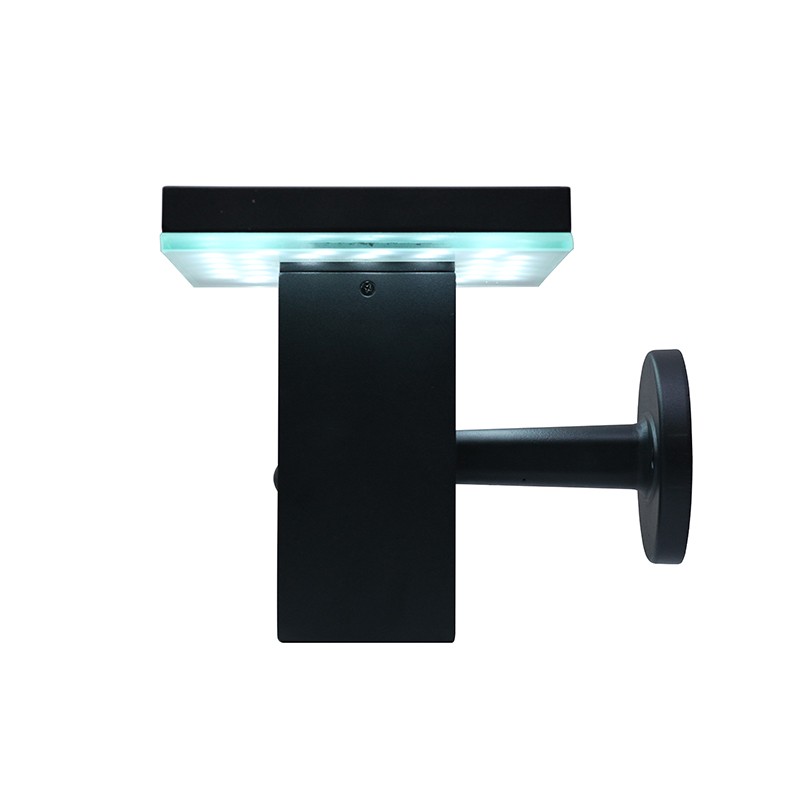

4.5W Solar Wall Light

Product: 4.5W Solar Wall Light
Classification: Solar Wall Light
Port: Shanghai, China
With integrated design to assemble all components ( solar panel, battery, led module, solar charger controller etc ) in one unit. very simple to use, no separated battery pack required and no complicated wiring or settings, all you need to do is to install it on the wall. the lights will switch on when the sun sets and switch off when the sun rises. easy to install with low cost installation and labor fee, also easy to transport and maintain.

Product Specifications

Light Source4.5 Watts
Luminous Flux675 ~ 765 lm
LED ChipCree, Lumileds, BridgeLux, Epistar etc Optional, 150 ~ 170 Lm / W, Service life of more than 50,000 hours
Beam Angle360°
Color Temperature3000 K ~ 6500 K optional
Solar Panels5V / 6.5W, High Efficiency Monocrystalline Solar Panel, Grade A, Service life 25 years
Battery3.2V / 12Ah, LiFePO4 battery, More than 2500 deep cycles, Service life 7 ~ 8 years
Charging Time8h ( AM 1.5, 1000W / ㎡, 25℃ )
Controller TypeIntelligent, IP 65
Controller ModeLight Control
Lighting TimeMore than 23 hours
Rainy Days Back up3 ~ 5 days
Case MaterialHigh Quality 6063 Aluminum + Tempered Glass
IP RatingIP 65
IK RatingIK 08
Working Temperature- 25℃ to  + 65℃

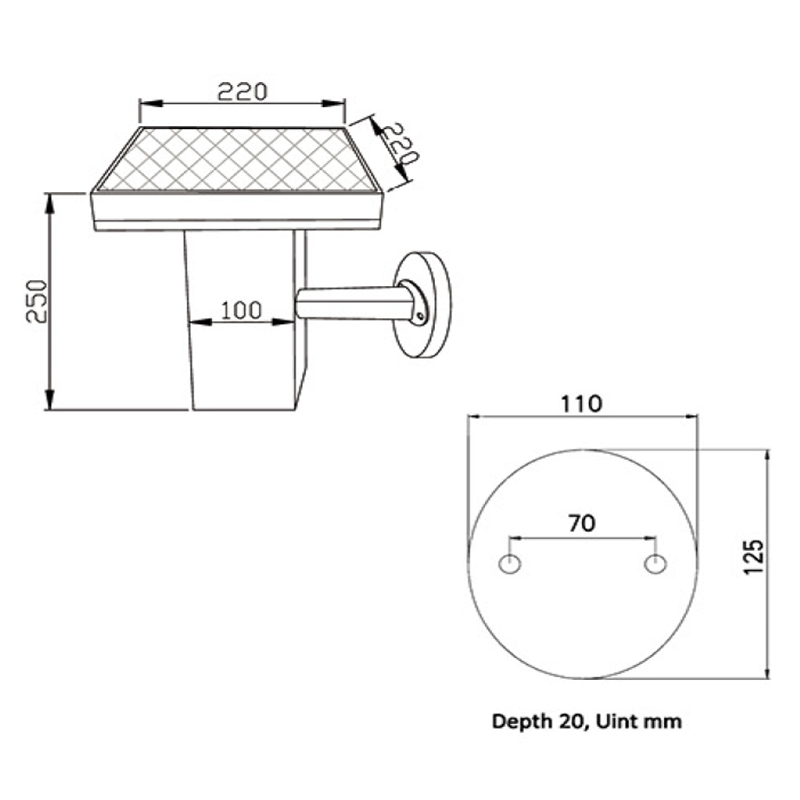

Product Sizeφ220 * 250 * 300 mm
Packing Size320 * 260 * 290 mm
Number of Packing1 Pcs / Carton
Net Weight3.7 KG
Gross Weight4.5 KG
Package Quantity1160 pcs / 20' GP  ,  2410 pcs / 40' GP
Warranty5 Years

Features

c3ebcb6d088a0539cb8e59ddfafe313.png■ Integration design, solar panel, led chips, battery, controller, motion sensor etc, all in on one lighting product, without extra cable, save shipping cost and labour cost.

■ Perfect combination of solar power and LED lighting, using solar power generation system, pure green energy, inexhaustible, environmental protection.

■ We use A-grade Monocrystalline Solar Panels to gain the max solar energy, because high efficiency solar panels can ensure fast charging ( The solar cells used in our solar lighting products are all from the top international brands, such as JinKoTrinaGCLLONGiJA Solar etc, the conversion rate is over 21% ).

 Top international brand LED chips ( Cree, Lumileds, BridgeLuxEpistar etc ) privide quality lighting.

■ Products shell with high quality aluminium alloy material, with light weight, corrosion resistance, wear and other characteristics, to ensure that products to adapt to wet, hydrochloric acid environment, is also good for heat dissipation.

■ Using high capacity and long life of LiFePO4 battery, 7 ~ 8 years working life and high-temperature resistance, make the whole light a longer life. even if the LiFePO4 battery internal or external damage, the battery doesn't burn, don't explode, good safety.

■ Safe and reliable rain proof & water proof design, the control system is also made of industrial grade components, adapts to all kinds of harsh environments, and ensures that the lights are bright every day.

■ No need of cable installation or special light pole, functional components modular design. installation, maintenance and replacement is convenient and quick.

 Extensively applied in the roads such as streets, pavements and other areas that need outdoor lighting, such as aquares, schools, residential quarters, industrial areas and parks.



Certificates



Application Areas


Solar Lawn Light is widely used in public areas and residential areas as follows3.png


 Road and street


 Office buildings


 Gardens, parks


 Residential areas like villa and appartment or houses




FAQ


1. How does the light work ?

During the daytime, the solar panel will gain the power from the sun and charge the battery, when night comes, the light will automaticlly turn on, the battery inside will provide the energy to the light.


2. How many hours can the light work ?

Normally, after fully charged, the light can work ≥ 23h.


3. How many rainy days can the light work ?

The light can work for 3 ~ 5 rainy days.


4. Is the battery replaceable ?

Yes. The battery inside is easy to replace. If the battery broken during the warranty period, we will offer you free replacement.


5. Can we buy samples ?

Yes. we welcome sample order to test and check quality. We will recommend you the suitable models according to your areas.


6. Do you have any MOQ limit for solar lighting product order ?

No, even only buy 1 pcs as a sample for test is also available.


7. What about the lead time ?

Sample needs 3 ~ 5 days, mass production time needs 1 ~ 2 weeks for order quantity.


8. Is it OK to print our company logo on package ?

Yes. Please inform us formally before our production and confirm the design firstly based on our sample.


9. What's your warranty ?

We provide 5 years warranty for the whole product, replace any damaged parts or whole product free of charge during the warranty period. but the product damage caused by force majeure is excepted.
